Description

FS Curtis Masterline "ML" Series - When You Absolutely Need Heavy Duty Industrial Reliability

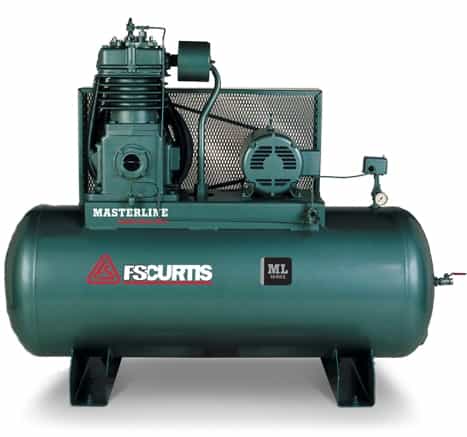

Masterline is the most robust, heavy-duty reciprocating air compressor in the FS Curtis lineup. The perfect combination of quality components and efficient design make the ML Series rugged, affordable and smart. Because every model is built tough to last a lifetime in demanding working conditions, the ML Series is an outstanding alternative to splash lubricated reciprocating compressors and small rotary compressors. Choose higher quality. Choose superior durability. Choose ML Series pressure lubricated air compressors.

Standard Features:

• Centro-Ring pressure lubrication
• 100% casting-iron cylinders, cylinder heads, connecting rods, and crankshaft
• Factory oil filled
• Magnetic motor starter (60Hz)
• Automatic Start-Stop control
• ASME approved air receiver
• Manual condensate tank drain valve
• Dial read-out pressure gauge
• UL approved pressure switch
• ASME approved discharge valve air service valve
• Metal intake filter-silencers
• Dynamically balanced flywheel
• OSHA approved totally enclosed belt guard
• Slow V-belt drive
• NEMA-1 control panel
• Premium Efficiency Motors (3-phase only)
• Tank shut off valve
• Dual Control ML5-ML15(D97) with pilot valve

Click Here To Download FS Curtis Masterline ML25 Tech Data Sheet

Click Here To Download FS Curtis Reciprocating Extended Warranty

Click Here To Download FS Curtis ML20-30 Dimensions

Click Here To Download FS Curtis ML Manual

Click Here To Download FS Curtis ML Brochure
