FS-Curtis NxV22 - 30hp Variable Speed Rotary Screw Air Compressor, 10 Year NxGen Warranty Available

Original price $36,081.00
Original price $36,081.00 - Original price $36,081.00
Original price $36,081.00
Current price $27,421.00
$27,421.00 - $27,421.00
Current price $27,421.00
Save $8,660.00 Save $8,660.00
SKU FNV22CXX4HXPC

Lead Time:

Generally Ships in 3-10 Days

Pressure: 129 CFM @ 100 PSI

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

FS-Curtis NxV, Variable Speed Rotary Screw Air Compressors

QUIET, EFFICIENT AND EFFECTIVE

Stable air pressure, steady airflow and quieter, continuous-duty operation are just a few of the advantages you get with FS-Curtis rotary screw compressors. These smart, compact units also offer better air quality with less oil carryover than reciprocating models. Intuitive controls and diagnostics make them easy to use and service, too. It all adds up to an extremely reliable machine that can run 100% continuous duty, delivering more airflow and better efficiency in a space-saving design — making the Nx Series ideal for automotive, light industrial and other applications that require reliable performance in demanding conditions.

Standard Features:

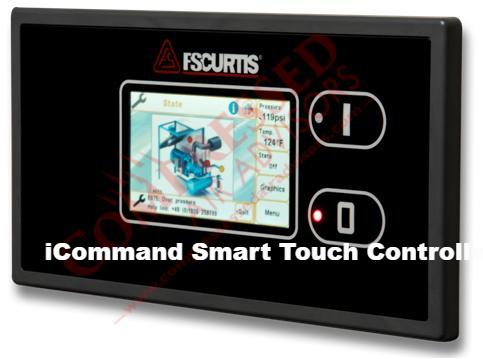

  • iCommand - Touch electronic controller
  • Vibration isolators
  • Leak-free design with heavy duty piping and O-ring seals

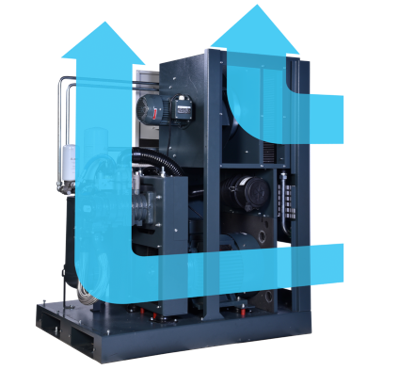

  • eCool™ Technology
  • Washable cabinet pre-filtration panels
  • Built-in heavy duty air intake filter
  • Powder-coat painted enclosure
  • Spin-on oil filter and air/oil separator
  • Air cooled oil cooler & aftercooler
  • Multi-function oil valve
  • Vibration isolators
  • Factory filled synthetic lubricant
  • Laminated oil-proof sound insulation

Electrics:

  • Premium Efficiency TEFC (IP55) motor
  • NEMA-1 electric panel
  • 115V control voltage transformer

Demand Smart Energy Management

ENERGY SAVINGS ARE SMART SAVINGS


Take control of your energy savings with our optional DemandSmart™ Energy Management System, which includes the controller, variable-speed drive,
and airend to create greater overall efficiency. This innovative design maximizes energy savings and reduces overall operating costs.


INTELLIGENT VARIABLE SPEED DRIVE


One of the ways the DemandSmart system in Nx Series compressors maximizes energy savings is with a variable speed drive (VSD). The VSD allows you
to match your energy usage to current system demands, eliminating the need to overpressure the system, so you’ll save money by not wasting energy.
In addition, the soft starting capability of FS-Curtis’ VSD reduces inrush current requirement, decreasing your power demand — and, of course, increasing
your energy savings.



  • The VSD — time-proven directly coupled design — offers faster response and greater operational efficiency
  • Variable operation slows airend speed, which lowers energy costs and reduces noise
  •  Matching the operating speed with changes in demand reduces component wear
  • With DemandSmart technology, the VSD enhances quality by stabilizing air pressure at 1 psi increments
  • Built-in DC choke protects against harmonic disturbances and eliminates the need to source additional corrective devices

    NXGEN WARRANTY

    Extended Warranty Program

    All Nx products are backed by an industry leading warranty:

    • Five-year major components warranty
    • Ten-year airend warranty

    Just register the machine online, Use only FS-Curtis Genuine Parts & Lubricants per the required maintenance schedule, and you will have peace of mind knowing that your machine is backed by the NxGEN Warranty

    Tech Data Warranty Dimensions Instruction Manual Brochure Video
