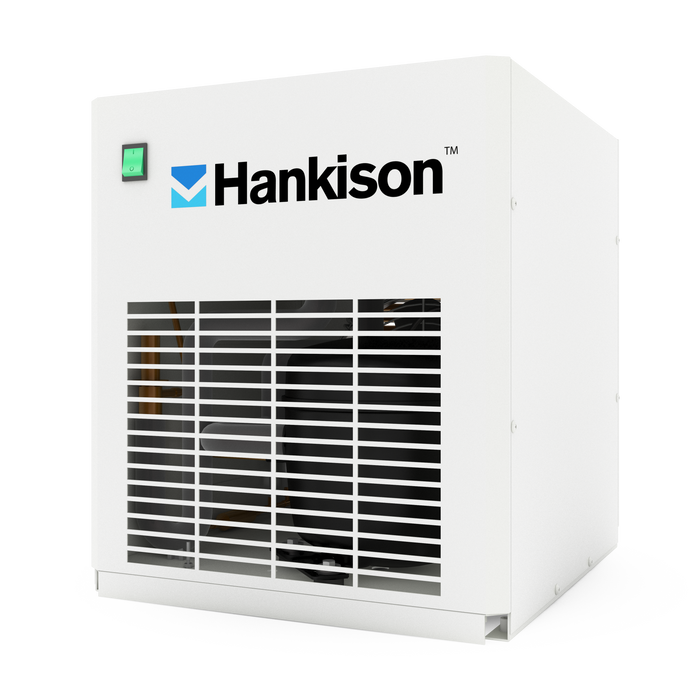

Hankison VNCA32-FP Non-Cycling Refrigerated Air Dryer – 32 SCFM, 115V/1Ph with Pre & After Filtration
FREE SHIPPING
On All Orders Over $149.00
Satisfaction Guaranteed
Easy Exchanges & Returns
Secure checkout
Protected By SSL
Description
Hankison VNCA32-FP Non-Cycling Refrigerated Air Dryer – 32 SCFM, 115V/1Ph with Pre & Post Filtration
Reliable Compressed Air Drying with Complete Pre & Post Filtration
The Hankison VNCA32-FP Non-Cycling Refrigerated Air Dryer provides dependable moisture removal and filtration for compressed air systems requiring up to 32 SCFM of treated air. Designed for industrial shops, manufacturing equipment, pneumatic tools, and other compressed air applications, the VNCA32-FP combines efficient refrigerated air drying with matched Hankison pre and post filtration in one complete air treatment package.
Operating on convenient 115V single-phase power, the VNCA32-FP uses R513A low-GWP refrigerant and consumes just 0.26 kW at full rated capacity. Its compact footprint makes it easy to incorporate into smaller compressor rooms, equipment areas, and point-of-use compressed air installations.
The VNCA32-FP includes a Hankison F04-PF-DP1 prefilter and F04-HF-DP1 afterfilter, providing filtration before and after the refrigerated dryer for cleaner, drier compressed air throughout your system.
Key Features & Benefits
32 SCFM Rated Capacity
- Rated for 32 SCFM
- Designed for smaller industrial and commercial compressed air systems
- Helps remove moisture before it reaches downstream piping and equipment
- Rated in accordance with ISO 7183 Option A2 conditions
Complete Pre & Post Filtration Package
- Pre and post filtration included
- Prefilter: F04-PF-DP1
- Afterfilter: F04-HF-DP1
- Prefiltration helps protect the dryer from incoming contaminants
- Afterfiltration provides additional compressed air treatment downstream
- Complete dryer and filtration package eliminates the need to separately select matching filters
Non-Cycling Refrigerated Dryer Design
- Proven non-cycling refrigerated drying technology
- Provides continuous moisture removal during operation
- Helps reduce water-related problems in compressed air piping
- Simple, dependable design for industrial applications
R513A Refrigerant
- Uses modern R513A refrigerant
- Lower global warming potential than many traditional refrigerants
- Designed for efficient refrigerated dryer performance
Low Power Consumption
- Consumes only 0.26 kW
- Provides effective compressed air drying with minimal electrical demand
- Well suited for smaller compressed air systems
115V Single-Phase Power
- 115V / 1Ph / 60 Hz
- No three-phase electrical service required
- Convenient for shops, maintenance departments, and smaller facilities
Compact Industrial Design
- 17.9" W x 20.2" D x 21" H
- Approximately 62 lbs.
- Compact footprint allows flexible installation
- 1/2" female NPT inlet and outlet connections
Integrated Condensate Removal
- Condensate drain included
- Automatically removes moisture separated during the refrigeration process
- Helps maintain consistent dryer performance
UL & CSA Certified
- Third-party certified to applicable UL and CSA standards
- Designed for safe operation in the United States and Canada
Ideal Applications
The Hankison VNCA32-FP is ideal for:
- Automotive repair and service shops
- Machine shops
- CNC equipment
- Woodworking and cabinet shops
- Light manufacturing
- Pneumatic tools
- Pneumatic controls and actuators
- Maintenance departments
- Packaging equipment
- Small rotary screw compressor systems
- Reciprocating air compressor systems
- General industrial compressed air
Technical Specifications
| Specification | Hankison VNCA32-FP |
|---|---|
| Rated Air Flow | 32 SCFM |
| Metric Air Flow | 54 Nm³/H |
| Dryer Type | Non-Cycling Refrigerated |
| Voltage | 115V / 1Ph / 60 Hz |
| Power Consumption | 0.26 kW |
| Refrigerant | R513A |
| Air Inlet / Outlet | 1/2" Female NPT |
| Width | 17.9" |
| Depth | 20.2" |
| Height | 21.0" |
| Shipping Weight | 62 lbs. |
| Prefilter | F04-PF-DP1 |
| Afterfilter | F04-HF-DP1 |
| Filtration | Pre & Post Filtration Included |
Frequently Asked Questions
How much compressed air can the Hankison VNCA32-FP handle?
The Hankison VNCA32-FP is rated for 32 SCFM under ISO 7183 Option A2 rating conditions. Actual dryer capacity can vary depending on operating pressure, compressed air inlet temperature, ambient temperature, and airflow demand.
Does the VNCA32-FP include air filters?
Yes. The VNCA32-FP includes both a Hankison F04-PF-DP1 prefilter and F04-HF-DP1 afterfilter, providing filtration before and after the refrigerated dryer.
Why is pre and post filtration important?
The prefilter helps remove contaminants before compressed air enters the dryer, helping protect the dryer and improve air treatment performance. The afterfilter provides additional filtration before compressed air enters the facility's distribution system or downstream equipment.
What voltage does the VNCA32-FP require?
The VNCA32-FP operates on 115V single-phase, 60 Hz power, making it convenient for facilities without three-phase electrical service.
What size air connections does the VNCA32-FP use?
The dryer uses 1/2-inch female NPT inlet and outlet connections.
What refrigerant does the VNCA32 use?
The VNCA32 uses R513A low-GWP refrigerant, designed to provide efficient refrigerated drying while improving environmental sustainability.
What are the rated conditions for the VNCA32-FP?
Hankison rates the VNCA Series in accordance with ISO 7183 Option A2 at:
- 100 PSIG inlet pressure
- 100°F compressed air inlet temperature
- 100°F ambient temperature
- 60 Hz electrical supply
Does the VNCA32-FP include a condensate drain?
Yes. The VNCA Series is furnished with a condensate drain to efficiently remove moisture separated from the compressed air.
