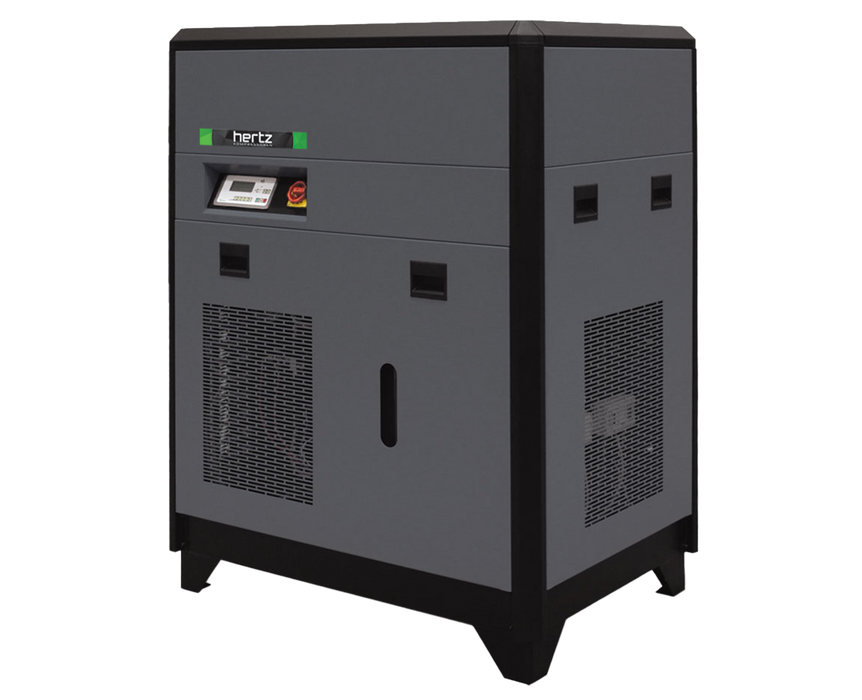

Hertz Kompressoren HRD US 500 – 500 CFM Refrigerated Air Dryer – 460V/3Ph
High-Temperature Performance. Integrated Filtration. Reliable Industrial Air Treatment.
The Hertz Kompressoren HRD US 500 is a 500 CFM refrigerated compressed air dryer engineered to remove moisture from industrial compressed air systems while maintaining low pressure loss and efficient operation.
Designed for demanding compressor room conditions, the HRD US 500 can handle compressed air inlet temperatures up to 140°F and ambient temperatures up to 122°F. It cools compressed air to a pressure dew point of approximately +37°F, helping remove condensate before it reaches pneumatic equipment, machinery, plant piping, and downstream processes.
This configuration is supplied for 460V / 3-Phase / 60 Hz electrical service and includes integrated inlet and outlet filtration for a more complete compressed air treatment package.
Key Features & Benefits
500 CFM Rated Capacity
The HRD US 500 is rated for 500 CFM under standard dryer rating conditions.
- 500 CFM
- 14.2 m³/min
- Industrial refrigerated dryer
- Designed for continuous-duty compressed air systems
- Low pressure-loss design
- Compact footprint
+37°F Pressure Dew Point
The HRD refrigerated dryer series is designed to cool compressed air to approximately a +37°F pressure dew point.
Cooling the compressed air causes water vapor to condense so it can be separated and removed before entering the plant air system.
This helps protect:
- Pneumatic tools
- CNC machinery
- Air cylinders
- Valves
- Production equipment
- Compressed air piping
- Downstream filters
- General industrial processes

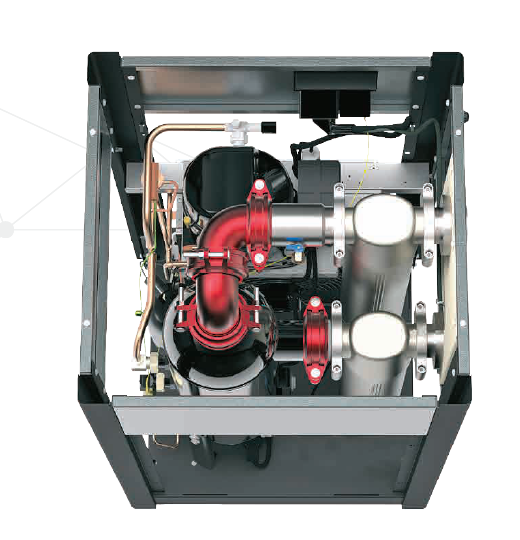

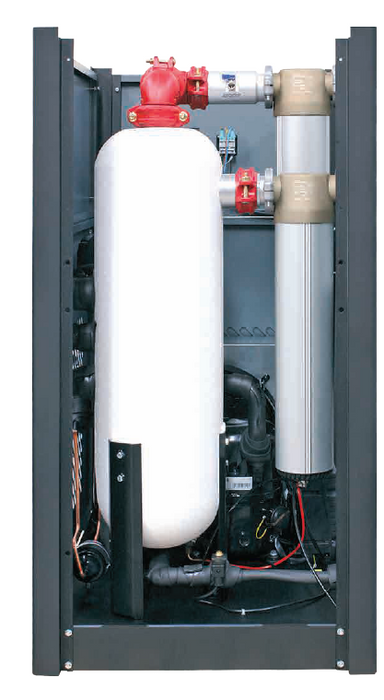

Integrated Pre-Filter & Fine Filter
The HRD US 500 includes integrated inlet and outlet filtration, helping simplify installation and reduce the number of separate compressed air treatment components required.
Pre-Filter
The integrated X pre-filter provides:
- 1-micron particle removal
- Oil removal down to 0.5 mg/m³
Fine Filter
The integrated Y fine filter provides:
- 0.01-micron particle removal
- Oil removal down to 0.01 mg/m³
The HRD US 500 uses the integrated HGKO1210MX + MY filter package.
High-Temperature Inlet Capability
The HRD US 500 is designed to handle compressed air inlet temperatures up to:
140°F
This makes it well suited for demanding industrial applications and compressor rooms where compressed air temperatures may be elevated.
The dryer is also rated for ambient temperatures up to:
122°F
232 PSI Maximum Working Pressure
The HRD US 500 has a maximum working pressure of:
232 PSI
This provides ample pressure capability for most standard industrial compressed air systems.
460V / 3-Phase / 60 Hz
This product listing is specifically for the:
460V / 3-Phase / 60 Hz configuration
This listing is for the 460V version only.
Digital Controller
The HRD series incorporates a digital controller designed for energy-efficient operation.
Key features include:
- Digital control
- Energy-saving operation
- High-efficiency dryer design
- Easy system monitoring
- Low pressure losses
- Convenient service access
- Separate electrical and cooling sections
Compact Industrial Design
The HRD US 500 provides 500 CFM of dryer capacity in a compact industrial enclosure.
Dimensions:
- 29" Length
- 37" Width
- 54" Height
Its compact footprint helps make installation easier in compressor rooms where floor space is limited.
R-134a Refrigerant
The HRD US 500 uses R-134a refrigerant.
The refrigeration system is designed to cool the compressed air stream, condense moisture, and provide reliable moisture removal under the specified operating conditions.
Technical Specifications
| Specification | Hertz HRD US 500 |
|---|---|
| Rated Capacity | 500 CFM |
| Metric Capacity | 14.2 m³/min |
| Dryer Type | Refrigerated Compressed Air Dryer |
| Pressure Dew Point | +37°F |
| Maximum Working Pressure | 232 PSI |
| Maximum Inlet Temperature | 140°F |
| Maximum Ambient Temperature | 122°F |
| Refrigerant | R-134a |
| Air Connection | 2" NPT |
| Voltage | 460V / 3-Phase / 60 Hz |
| Integrated Filtration | Yes |
| Pre-Filter | 1 Micron / 0.5 mg/m³ Oil Removal |
| Fine Filter | 0.01 Micron / 0.01 mg/m³ Oil Removal |
| Integrated Filter Package | HGKO1210MX + MY |
| Length | 29 in. |
| Width | 37 in. |
| Height | 54 in. |
| Weight | 506 lbs. |
Ideal Applications
The Hertz HRD US 500 is well suited for:
- Manufacturing facilities
- CNC machining operations
- Metal fabrication
- Automotive manufacturing
- Plastics manufacturing
- Woodworking operations
- Packaging facilities
- Pneumatic automation
- Industrial maintenance departments
- General manufacturing
- Larger rotary screw compressor systems
- Compressed air systems requiring approximately 500 CFM of dryer capacity
Proper Dryer Sizing
Refrigerated air dryers should be sized according to the actual operating conditions, not compressor CFM alone.
Dryer capacity can be affected by:
- Compressed air inlet temperature
- Operating pressure
- Ambient temperature
- Compressor airflow
High inlet temperatures and high ambient temperatures can reduce the effective capacity of a refrigerated air dryer, so proper sizing is important.
If you are unsure whether the HRD US 500 is the correct size for your application, contact Compressed Air Advisors and we can help calculate the proper dryer size based on your actual operating conditions.
Why Choose the Hertz HRD US 500?
The HRD US 500 combines several important compressed air treatment functions into one industrial package:
- 500 CFM capacity
- +37°F pressure dew point
- Integrated pre-filter
- Integrated fine filter
- 140°F maximum inlet temperature
- 122°F maximum ambient temperature
- 232 PSI maximum working pressure
- 460V / 3-Phase / 60 Hz
- Low pressure-loss design
- Digital controller
- Compact footprint
- Easy maintenance access
For industrial facilities looking for a complete refrigerated air treatment solution, the integrated filtration can help simplify installation while reducing the number of separately mounted components.
Why Buy from Compressed Air Advisors?
Compressed Air Advisors specializes in compressed air treatment equipment and complete industrial compressed air systems.
We can help determine the proper dryer based on:
- Compressor CFM
- Operating pressure
- Inlet air temperature
- Ambient temperature
- Required pressure dew point
- Filtration requirements
- Compressor horsepower
- Electrical requirements
- Future compressed air demand
Questions about the Hertz HRD US 500? Call Compressed Air Advisors at 877-247-2381.
Frequently Asked Questions
How many CFM is the Hertz HRD US 500 rated for?
The HRD US 500 is rated for 500 CFM under standard dryer rating conditions.
What voltage is this HRD US 500?
This product listing is specifically for 460V / 3-Phase / 60 Hz.
What pressure dew point does the HRD US 500 provide?
The HRD refrigerated dryer series is designed to provide a pressure dew point of approximately +37°F.
Does the HRD US 500 include filters?
Yes. It includes an integrated 1-micron pre-filter and 0.01-micron fine filter.
What is the maximum inlet temperature?
The HRD US 500 is rated for compressed air inlet temperatures up to 140°F.
What is the maximum ambient temperature?
The maximum rated ambient temperature is 122°F.
What is the maximum working pressure?
The HRD US 500 has a maximum working pressure of 232 PSI.
What size air connection does the HRD US 500 use?
The dryer uses 2" NPT compressed air connections.
How much does the HRD US 500 weigh?
The HRD US 500 weighs approximately 506 lbs.
Is the HRD US 500 suitable for high-temperature compressor rooms?
Yes. The dryer is designed for inlet temperatures up to 140°F and ambient temperatures up to 122°F, making it suitable for demanding compressor room conditions within those operating limits.
