Description

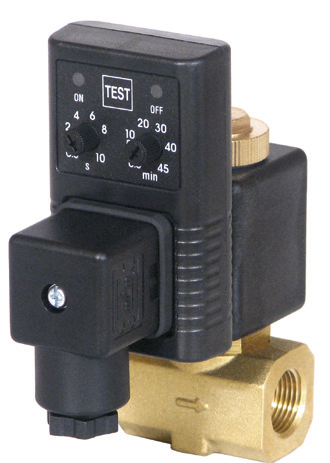

JORC EAD Economy Timer-Controlled Condensate Drains, 230 PSI
Automatically remove condensate from compressors, compressed air dryers and receivers with the JORC EAD economy timer drain. Choose the voltage and NPT connection size required for your installation.
Key Features
- Economy timer-controlled condensate discharge
- 4 mm valve orifice
- Operating pressure from 0 to 230 PSI
- 115 VAC and 230 VAC options
- Matching inlet and outlet ports in three NPT sizes
Specifications
| Specification | Details |
|---|---|
| Series | EAD |
| Applications | Compressors, compressed air dryers and receivers |
| Pressure | 0–230 PSI |
| Orifice | 4 mm |
| Inlet and outlet | 1/4-inch, 3/8-inch or 1/2-inch NPT; select variant |
| Supply voltage | 115 VAC or 230 VAC |
Models and Manufacturer Part Numbers
| MPN / SKU | Voltage | Inlet and Outlet |
|---|---|---|
| 2301 | 230 VAC | 1/4" NPT |
| 2321 | 115 VAC | 1/4" NPT |
| 2302 | 230 VAC | 3/8" NPT |
| 2322 | 115 VAC | 3/8" NPT |
| 2303 | 230 VAC | 1/2" NPT |
| 2323 | 115 VAC | 1/2" NPT |
Optional Service Kits and Accessories
Sold separately. Match coils to the selected voltage and confirm heater and adapter compatibility before ordering.
| Part Number | Description |
|---|---|
| 8201 | Replacement EAD timer, 24–240 VAC/DC |
| 298214 | Valve service kit |
| 42300 | 230 VAC coil |
| 42320 | 115 VAC coil |
| 9010 | Wall mounting bracket |
| 38134 | Drain heater, 230 VAC |
| 38135 | Drain heater, 115 VAC |
| 9049 | Drain heater T-adapter |
Contact Compressed Air Advisors for assistance selecting or ordering these parts.
Shipping and Availability
Free standard shipping applies to eligible domestic orders of $199 or more. A single EAD does not reach the threshold; combine eligible items to qualify. Contact us for current lead time.
Choosing Your Drain
Browse our condensate drain collection. For integrated inlet filtration, consider the JORC COMBO timer drain with ball valve and strainer.
Frequently Asked Questions
Is the EAD a zero air loss drain?
No. EAD opens on a timer rather than sensing condensate level. Set discharge timing to suit the condensate load and limit unnecessary compressed air loss.
Which port sizes are available?
Select 1/4-inch, 3/8-inch or 1/2-inch NPT. Inlet and outlet sizes match on each variant.
Which voltage should I choose?
Choose 115 VAC or 230 VAC to match your actual electrical supply. Verify the supply before ordering.
What is the maximum pressure?
The guide rates these EAD drains from 0 to 230 PSI. All connected components must be suitable for the system pressure.
What is the valve orifice size?
JORC specifies a 4 mm orifice for the EAD economy timer drain.
What replacement service parts are listed?
The guide lists timer 8201, valve service kit 298214, 230 VAC coil 42300 and 115 VAC coil 42320. Match parts to your drain configuration.
Are accessories included?
Optional service parts, wall mounting bracket and heater accessories are sold separately. Confirm compatibility before ordering.
Does a single EAD qualify for free shipping?
At $119, one EAD is below the $199 threshold. Eligible domestic orders qualify for free standard shipping when their subtotal reaches $199.
