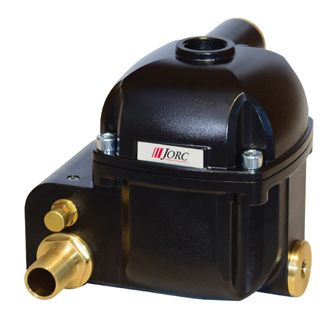

JORC NUFORS-XF 3806 Zero Loss Drain, 17,500 CFM, 3/4 NPT
FREE SHIPPING
On All Orders Over $199.00
Satisfaction Guaranteed
Easy Exchanges & Returns
Secure checkout
Protected By SSL
Description
JORC NUFORS-XF 3806 Pneumatic Zero Air Loss Drain - Up to 17,500 CFM
The NUFORS-XF 3806 removes condensate automatically from high-capacity compressed air systems without electricity. A pneumatic level-sensing mechanism opens the drain when needed, avoiding the unnecessary compressed air loss associated with timed discharge.
Key Features
- 12 mm valve orifice for high condensate flow
- Three 3/4-inch NPT inlet options
- 44-230 PSI working range
- Test feature and serviceable valve
- Corrosion-resistant aluminum housing with EP coating
- NEMA 6 / IP68 protection
Specifications
| Manufacturer part number | 3806 |
|---|---|
| Maximum compressor capacity | 17,500 CFM guideline; confirm condensate load |
| Maximum drainage capacity | 1,260 gallons per hour at 230 PSI |
| Operating pressure | 44-230 PSI |
| Inlet connections | 3/4-inch NPT, three inlet options |
| Outlet connection | 3/4-inch BSP with brass hose barb adapter |
| Valve orifice / seals | 12 mm / FPM |
| Ambient and medium temperature | 34-122°F |
Optional Service Kit and Accessories
Sold separately. The following items appear in the POD/NUFORS section of JORC's price guide. Confirm fitting sizes, mounting fit and heater installation requirements before ordering. The drain itself requires no electricity.
| Part Number | Description |
|---|---|
| 38001 | NUFORS-XF replacement service kit |
| JBVY-050 | Ball valve strainer; confirm connection size and any required adapters |
| 9021 | Wall mounting bracket; confirm fit for the NUFORS-XF installation |
| 38134 | Drain heater, 230 VAC; confirm installation requirements |
| 38135 | Drain heater, 115 VAC; confirm installation requirements |
| 9049 | Drain heater T-adapter; confirm thread size and required adapters |
Contact Compressed Air Advisors for help selecting or ordering these items.
Shipping and Availability
Free standard shipping on eligible domestic orders of $199 or more. Destination restrictions and expedited shipping charges may apply. Contact us for current availability and lead time.
Complete Your Condensate System
Compare alternatives in our zero-loss condensate drain collection. Pair your drain with an appropriately sized JORC SEPREMIUM oil/water separator when treating oily condensate.
Frequently Asked Questions
Does the NUFORS-XF require electricity?
No. It is pneumatically operated. Optional electric heater accessories require their own power supply.
What pressure range does it need?
The NUFORS-XF operates from 44 to 230 PSI. Do not select it for a system operating below 44 PSI.
How does it compare with the POD-TD?
The NUFORS-XF has a 12 mm valve orifice and three 3/4-inch inlet options. The POD-TD has a 6 mm orifice and three 1/2-inch inlet options.
What inlet and outlet connections are supplied?
Part 3806 has three 3/4-inch NPT inlet options. JORC specifies a 3/4-inch BSP outlet with a brass hose barb adapter. NPT and BSP threads are different.
Which replacement service kit does it use?
The NUFORS-XF uses service kit 38001, sold separately. The POD-TD service kit 38000 is for a different model.
Does this drain qualify for free shipping?
Yes. At its current selling price, it qualifies for free standard shipping on eligible domestic orders of $199 or more. Destination restrictions and expedited charges may apply.
Shop Service Parts and Accessories
Find available service kits and accessories in our JORC Drain Accessories collection. Match the part number to the compatible drain models listed on each accessory page. Confirm model, voltage, fittings and pressure rating before ordering.
