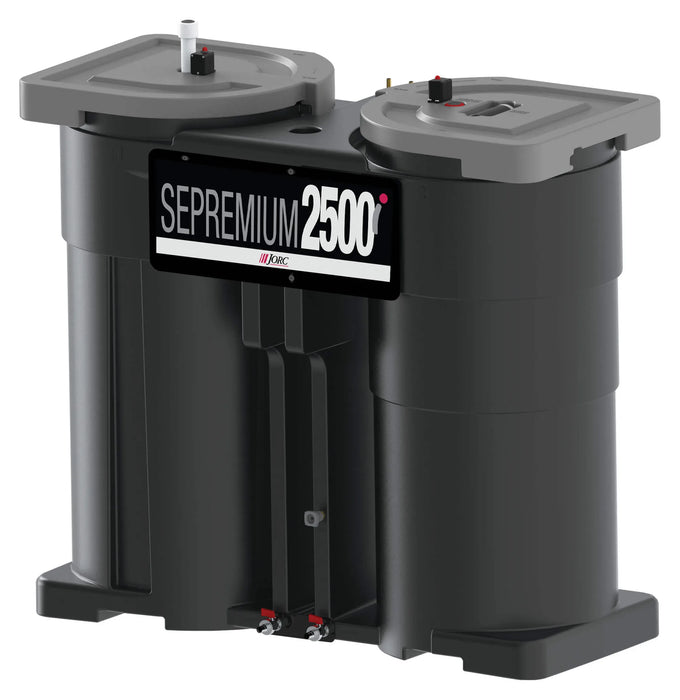

JORC SEPREMIUM 2500i Serviceable Oil/Water Separator | 2,500 CFM | Three-Stage Filtration

The JORC SEPREMIUM 2500i Serviceable Oil/Water Separator is a high-capacity industrial condensate treatment solution engineered for compressed air systems with capacities up to 2,500 CFM. Designed for large manufacturing facilities, centralized compressor stations, and demanding industrial environments, the SEPREMIUM 2500i provides reliable oil/water separation while helping facilities manage condensate disposal and applicable environmental discharge requirements.

Featuring advanced three-stage filtration technology, the SEPREMIUM 2500i utilizes two specially treated polypropylene filtration elements followed by a final activated carbon polishing stage. This process captures oil contamination from compressed air condensate, providing a manufacturer-stated target residual oil content of less than 10 ppm under specified operating conditions.

The SEPREMIUM 2500i incorporates a visual element-life indicator, integrated service drains, and an overflow indicator to simplify routine maintenance and help operators identify potential problems before untreated condensate spills occur. Its serviceable filtration design allows replacement of saturated elements without replacing the entire separator housing, helping reduce ongoing maintenance expenses.

With a 13-gallon maximum oil adsorption capacity, durable recyclable polyethylene housing, and compatibility with JORC timer-controlled and level-sensed condensate drains, the SEPREMIUM 2500i delivers dependable condensate treatment for high-demand industrial compressed air systems.

Key Features & Benefits

• 2,500 CFM Maximum Compressor Capacity: Designed for large compressed air installations with a maximum combined compressor capacity of 2,500 CFM.

• Advanced Three-Stage Filtration: Two specially treated polypropylene filtration elements and a final activated carbon polishing stage effectively reduce oil contamination.

• 13-Gallon Maximum Oil Adsorption: High-capacity filtration media support condensate treatment in large industrial compressed air systems.

• Visual Element-Life Indicator: Provides an indication of filtration element condition to assist with maintenance planning.

• Integrated Overflow Indicator: Helps alert maintenance personnel to potential condensate overflow conditions.

• Built-In Service Drains: Allow individual filtration towers to be drained during routine maintenance and cleaning.

• Serviceable Filtration Design: Replaceable filtration elements help reduce long-term replacement costs and equipment waste.

• Multiple Lubricant Configurations: Different filtration versions are available for mineral oils, compatible synthetic lubricants, and specialized condensate emulsions.

• Special Lubricant Applications: JORC identifies versions for applications involving Ultra Coolant, Sigma Mol, and Roto-Inject compressor lubricants.

• Condensate Drain Compatibility: Operates with compatible JORC timer-controlled and level-sensed condensate drains.

• Brass Hose Connections: Provide secure connections for convenient installation and servicing.

• Convenient Condensate Testing: Includes a test valve and sample bottle to help monitor treated condensate quality.

• Durable Recyclable Construction: Polyethylene housing is designed for industrial service and recyclability.

• Low Residual Oil Content: Manufacturer target of less than 10 ppm under specified conditions.

• Flexible Industrial Applications: Suitable for larger compressor rooms and centralized condensate collection systems.

Technical Specifications

Choosing the Correct SEPREMIUM 2500i Lubricant Configuration

The JORC SEPREMIUM 2500i is available in different filtration configurations intended to accommodate varying compressor lubricants and condensate characteristics.

Selecting the appropriate filtration media is essential for dependable oil separation. Conventional mineral oils, synthetic compressor lubricants, and polyglycol-based fluids can behave differently when mixed with water, particularly when stable emulsions are present.

Available Models & Lubricant Compatibility

The following part numbers are listed in JORC's August 2026 price book for the SEPREMIUM 2500 family. Confirm that they also apply to the SEPREMIUM 2500i before publishing them as selectable 2500i variants.

KA – Mineral & Synthetic Compressor Oils (9660-JC)

The KA configuration is intended for conventional mineral-based compressor oils and compatible synthetic lubricants used in industrial compressed air systems.

This option may be suitable for many oil-lubricated rotary screw and reciprocating compressor applications. Always confirm compatibility with the exact compressor lubricant formulation before ordering.

Standard / Neutral Configuration (9660-JN)

The 9660-JN configuration is identified as the standard SEPREMIUM 2500 version in JORC's price book.

Because the price book does not fully define its lubricant compatibility, confirm the recommended application with JORC or Compressed Air Advisors before ordering. Do not assume this configuration is compatible with every compressor lubricant.

PG – Polyglycol & Stable Emulsion Applications (9660-PG-JN)

The PG configuration is intended for applications involving polyglycol-based compressor lubricants and compatible stable oil/water emulsions.

These lubricants can form persistent emulsions that require specialized filtration media for effective condensate treatment.

Special Compressor Lubricant Applications

JORC identifies specialized filtration versions for certain compressor lubricants, including:

• Ultra Coolant

• Sigma Mol

• Roto-Inject

Because these lubricant formulations may require application-specific filtration, confirm the appropriate version before ordering.

Not Sure Which Configuration You Need?

The correct SEPREMIUM 2500i configuration depends on the compressor lubricant formulation, condensate characteristics, and total compressed air system capacity.

For assistance selecting the correct separator, provide our team with:

• Air compressor manufacturer and model

• Lubricant manufacturer and product name

• Total combined compressor capacity in CFM

• Any specific condensate treatment or discharge requirements

Contact Compressed Air Advisors at 877-247-2381 for assistance selecting the correct JORC oil/water separator.

Common Applications

The JORC SEPREMIUM 2500i is designed for large industrial compressed air installations that require dependable high-capacity condensate treatment.

Typical applications include:

• Large-scale manufacturing and production facilities

• Centralized industrial compressor rooms

• Multi-compressor compressed air systems

• Automotive and heavy equipment manufacturing

• Metal fabrication and machining facilities

• Industrial maintenance and production operations

• Continuous-duty compressed air installations

• Facilities with multiple condensate collection points

Installation & Maintenance

The SEPREMIUM 2500i is engineered for integration into centralized industrial compressed air condensate management systems.

Condensate collected from air compressors, air receiver tanks, refrigerated air dryers, and inline compressed air filters can be directed into the separator using appropriately designed condensate collection piping.

The three-stage filtration process captures oil contamination through two treated polypropylene filtration elements, followed by an activated carbon polishing stage that further reduces residual oil content.

Visual Element-Life Monitoring

The SEPREMIUM 2500i features a visual element-life indicator that allows maintenance personnel to monitor the condition of the filtration media.

This provides a convenient indication of when inspection or replacement may be necessary, reducing reliance on estimated service intervals alone.

Overflow Protection

An integrated overflow indicator helps alert operators to potential condensate backup or overflow conditions.

If the indicator shows an abnormal condition, inspect the separator, filtration elements, and condensate inlet and outlet arrangements according to JORC maintenance instructions.

Routine Service & Filter Replacement

The SEPREMIUM 2500i uses replaceable filtration elements, allowing the separator housing to remain in service during routine filter replacement.

Integrated service drains permit individual filtration sections to be emptied during servicing, helping simplify maintenance and reduce the potential for spills.

Condensate Quality Testing

The included test valve and sample bottle allow operators to collect treated condensate samples and monitor separator performance.

Regular condensate testing is recommended to help verify effective oil separation and determine when filtration maintenance may be required.

Replacement Service Kits

JORC's August 2026 price book identifies the following replacement service packs for the SEPREMIUM 2500 family. Confirm compatibility with the 2500i before ordering.

Always select the correct service pack for the installed separator model and lubricant configuration.

Important: Proper oil/water separator sizing depends on combined compressor capacity, lubricant type, operating conditions, and condensate production. Treated condensate must meet applicable local wastewater discharge requirements before disposal.

Frequently Asked Questions

1. What size compressed air system can the JORC SEPREMIUM 2500i handle?

The JORC SEPREMIUM 2500i is designed for compressed air systems with a maximum combined compressor capacity of 2,500 CFM. For facilities operating multiple compressors connected to a common condensate collection network, the combined compressor capacity must be considered when sizing the separator. Lubricant characteristics, condensate volume, and operating conditions should also be evaluated.

2. Which lubricant configuration should I choose for the JORC SEPREMIUM 2500i?

The SEPREMIUM 2500 family includes configurations for conventional mineral oils, compatible synthetic lubricants, and specialized polyglycol-based condensate emulsions. JORC's August 2026 price book identifies 9660-JC (KA), 9660-JN (Standard), and 9660-PG-JN (Polyglycol) for the SEPREMIUM 2500, but compatibility with the 2500i designation should be confirmed before ordering. Selecting the correct filtration media is essential for dependable oil separation.

3. What does the element-life indicator on the JORC SEPREMIUM 2500i do?

The SEPREMIUM 2500i includes a visual element-life indicator designed to help maintenance personnel monitor filtration element condition. This provides a convenient indication of when inspection or filter replacement may be necessary. Treated condensate should also be tested periodically to verify proper separator performance.

4. How often should the filtration elements in the SEPREMIUM 2500i be replaced?

Filter replacement intervals depend on compressor operating hours, lubricant carryover, condensate volume, and filtration loading. The SEPREMIUM 2500i features replaceable filtration elements, service drains, and a visual element-life indicator to simplify routine maintenance. Follow JORC's maintenance instructions and verify that replacement service packs match your installed separator configuration.

5. How does the JORC SEPREMIUM 2500i compare with the SEPREMIUM 1250i?

The SEPREMIUM 2500i supports compressed air installations up to 2,500 CFM, compared with 1,250 CFM for the SEPREMIUM 1250i. The 2500i also provides a maximum oil adsorption capacity of 13 gallons, compared with 6.6 gallons for the 1250i. Both models feature serviceable filtration systems and maintenance-monitoring features, making total compressor capacity and condensate production key selection factors.

6. What oil separation performance does the JORC SEPREMIUM 2500i provide?

The SEPREMIUM 2500i uses two treated polypropylene filtration elements followed by a final activated carbon polishing stage. The manufacturer states a target residual oil content below 10 ppm under specified operating conditions. Actual performance depends on lubricant compatibility, filtration condition, condensate characteristics, and correct separator sizing.

7. Can the JORC SEPREMIUM 2500i operate with zero-air-loss condensate drains?

Yes, the SEPREMIUM 2500i is compatible with JORC timer-controlled and level-sensed condensate drains, including compatible zero-air-loss designs. Condensate discharged from compressors, receiver tanks, air dryers, and filtration equipment can be routed to the separator through properly designed collection piping. Its brass hose connections simplify installation and servicing.

8. Can the JORC SEPREMIUM 2500i treat condensate containing Ingersoll Rand Ultra Coolant?

JORC identifies special SEPREMIUM filtration versions for applications involving Ultra Coolant, Sigma Mol, and Roto-Inject compressor lubricants. These lubricants may produce condensate requiring specialized filtration media rather than standard oil-adsorbing elements. Confirm the exact lubricant formulation and recommended separator configuration with Compressed Air Advisors before ordering.

Why Buy from Compressed Air Advisors?

At Compressed Air Advisors Online, we specialize in industrial compressed air equipment and condensate management solutions. Our knowledgeable team can help you select the correct JORC oil/water separator based on compressor capacity, lubricant type, and operating requirements.

• Expert Technical Support: Professional assistance with separator sizing, lubricant compatibility, and condensate treatment applications.

• Competitive Pricing: Excellent value on JORC oil/water separators, replacement service kits, and condensate management equipment.

• Free Shipping: Free freight to the contiguous 48 United States.

• Complete Compressed Air Solutions: Air compressors, refrigerated air dryers, filtration equipment, condensate drains, oil/water separators, and maintenance products.

Order Your JORC SEPREMIUM 2500i Today

The JORC SEPREMIUM 2500i Serviceable Oil/Water Separator provides high-capacity condensate treatment for industrial compressed air systems up to 2,500 CFM. Its three-stage filtration, 13-gallon oil adsorption capacity, visual element-life monitoring, integrated service drains, and overflow indicator make it a dependable solution for large-scale compressed air operations.

Contact Compressed Air Advisors for assistance confirming the appropriate lubricant configuration, separator sizing, and model compatibility before placing your order.
