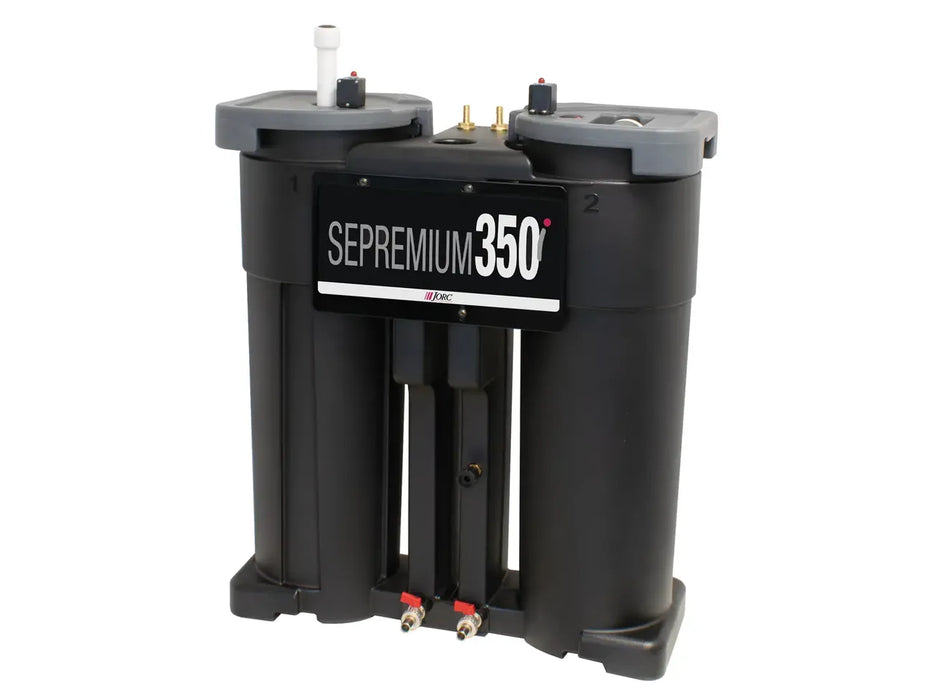

JORC SEPREMIUM 350i Serviceable Oil/Water Separator | 350 CFM | Three-Stage Filtration

The JORC SEPREMIUM 350i Serviceable Oil/Water Separator is a high-performance condensate treatment solution designed for compressed air systems with capacities up to 350 CFM. Featuring advanced three-stage filtration technology, the SEPREMIUM 350i effectively separates oil from compressed air condensate, helping industrial facilities manage wastewater discharge requirements while reducing maintenance costs.

Engineered with two specially treated polypropylene filtration elements and a final activated carbon polishing stage, the SEPREMIUM 350i provides efficient oil separation for a wide range of compressed air applications. Its serviceable filtration design allows individual elements to be replaced without replacing the entire separator, providing dependable long-term operation.

The SEPREMIUM 350i includes a visual element-life indicator, built-in service drains, and an overflow indicator to simplify maintenance and help prevent condensate spills. These features make it an excellent choice for manufacturing plants, automotive facilities, fabrication shops, and industrial compressor installations requiring convenient condensate management.

Available in KA, JN, and PG filtration configurations, the SEPREMIUM 350i can accommodate different compressor lubricant and condensate characteristics. With a maximum oil absorption capacity of 2.6 gallons, durable recyclable construction, and compatibility with JORC condensate drains, this separator provides a practical solution for larger compressed air installations.

Key Features & Benefits

• 350 CFM Maximum Compressor Capacity: Designed for compressed air installations with a combined compressor capacity up to 350 CFM.

• Advanced Three-Stage Filtration: Two specially treated polypropylene filtration elements and a final activated carbon polishing stage provide effective oil separation.

• Visual Element-Life Indicator: Provides a convenient indication of filtration element condition to help determine when maintenance is required.

• Built-In Overflow Indicator: Helps alert operators to potential overflow conditions before condensate spills occur.

• Integrated Service Drains: Allow individual filtration towers to be drained during routine maintenance and cleaning.

• Serviceable Filtration System: Replaceable elements help reduce long-term operating costs and equipment waste.

• 2.6-Gallon Oil Absorption Capacity: Designed to handle oil contamination associated with larger compressed air installations.

• Multiple Lubricant Configurations: KA, JN, and PG versions are available for different compressor lubricant requirements.

• Lightweight Replacement Elements: Ergonomically designed filtration components simplify handling and maintenance.

• Compatible with JORC Condensate Drains: Operates with timer-controlled and level-sensed condensate drains.

• Brass Hose Connections: Provide secure connections for fast installation and servicing.

• Convenient Condensate Testing: Includes a test valve and sample bottle to assist with treated-water testing.

• Durable Recyclable Construction: Polyethylene housing designed for long-term service and recyclability.

• EPA Compliance: Designed for condensate treatment applications, subject to applicable discharge requirements.

Technical Specifications

Choosing the Correct SEPREMIUM 350i Lubricant Configuration

The JORC SEPREMIUM 350i is available in three filtration configurations designed to treat condensate containing different types of compressor lubricants.

Selecting the correct filtration media is essential for effective oil separation. Some compressor lubricants separate readily from water, while others form stable emulsions requiring specialized adsorption media.

Available Models & Lubricant Compatibility

KA – Mineral & Synthetic Compressor Oils (9810 JC)

The KA configuration is intended for conventional mineral-based compressor oils and compatible synthetic lubricants used in industrial compressed air equipment.

This version is suitable for many oil-lubricated rotary screw and reciprocating compressor installations using standard compressor lubricants.

JN – Neutral Filtration Configuration (9810 JN)

The JN configuration features JORC's neutral filtration arrangement.

Since compressor lubricant formulations and condensate characteristics vary, compatibility with the JN configuration should be confirmed with JORC or Compressed Air Advisors before ordering. The neutral designation does not automatically mean the separator is compatible with every lubricant type.

PG – Polyglycol & Stable Emulsion Applications (9810 JB)

The PG configuration is intended for condensate containing polyglycol-based compressor lubricants and compatible stable oil/water emulsions.

These lubricants may form persistent emulsions that require specialized filtration materials rather than conventional oil separation media.

Special Compressor Lubricant Applications

JORC also offers specialized SEPREMIUM configurations for applications involving certain compressor lubricants, including:

• Ultra Coolant

• Sigma Mol

• Roto-Inject

These lubricants may have specific treatment requirements. Contact Compressed Air Advisors to confirm the appropriate filtration configuration for your application.

Not Sure Which Configuration You Need?

The correct SEPREMIUM 350i configuration depends on your compressor lubricant formulation, condensate characteristics, and total compressed air system capacity.

If you are unsure which model to order, provide our team with:

• Air compressor manufacturer and model

• Compressor lubricant manufacturer and product name

• Total combined compressor capacity in CFM

• Any special condensate treatment or discharge requirements

Contact Compressed Air Advisors at 877-247-2381 for assistance selecting the appropriate JORC SEPREMIUM 350i configuration.

Common Applications

The JORC SEPREMIUM 350i is designed for industrial and commercial compressed air systems that require dependable condensate treatment and convenient maintenance.

Typical applications include:

• Manufacturing and production facilities

• Automotive repair and service operations

• Metal fabrication and machining facilities

• Industrial compressor rooms

• Maintenance and equipment service departments

• Multi-compressor compressed air installations

• Commercial and industrial workshops

• Facilities requiring high-capacity condensate treatment

Installation & Maintenance

The JORC SEPREMIUM 350i is engineered for straightforward integration into industrial compressed air condensate management systems.

Condensate discharged from air compressors, air receivers, refrigerated air dryers, and compressed air filters can be collected and directed into the separator for treatment.

The three-stage filtration system uses specially treated polypropylene elements to capture oil contamination, followed by an activated carbon polishing stage to further reduce residual oil in the treated condensate.

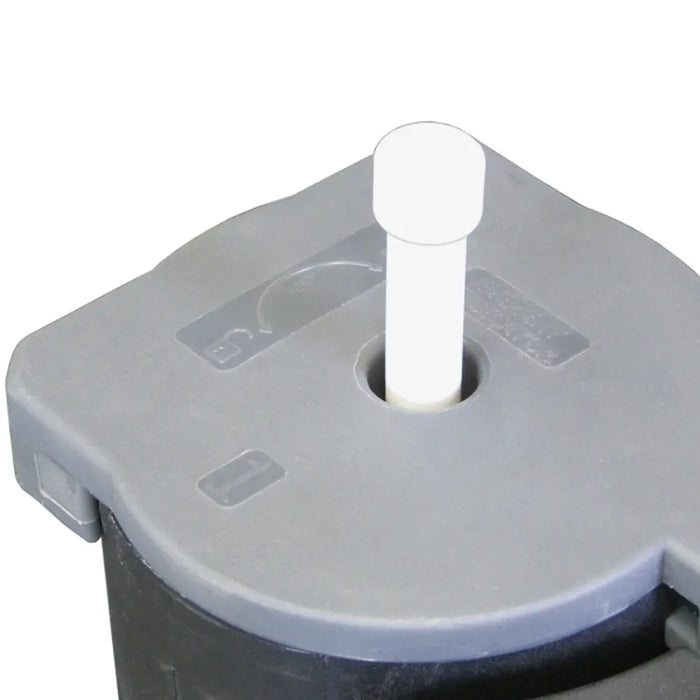

Visual Element-Life Monitoring

The SEPREMIUM 350i includes a visual element-life indicator designed to help operators monitor filtration condition and identify when replacement elements may be required.

Unlike basic separators that depend entirely on scheduled inspections, this indicator provides additional visibility into the separator's maintenance requirements.

Overflow Protection

An integrated overflow indicator provides a visible indication of potential overflow conditions, helping maintenance personnel identify problems before untreated condensate escapes the separator.

Operators should inspect the separator whenever the overflow indicator signals an abnormal condition.

Routine Service & Filter Replacement

The SEPREMIUM 350i features lightweight, replaceable filtration elements designed to simplify servicing.

Integrated service drains allow individual filtration towers to be emptied during maintenance, helping make element replacement cleaner and more convenient.

The test valve and sample bottle allow operators to periodically check treated condensate quality and verify that the separator is operating as intended.

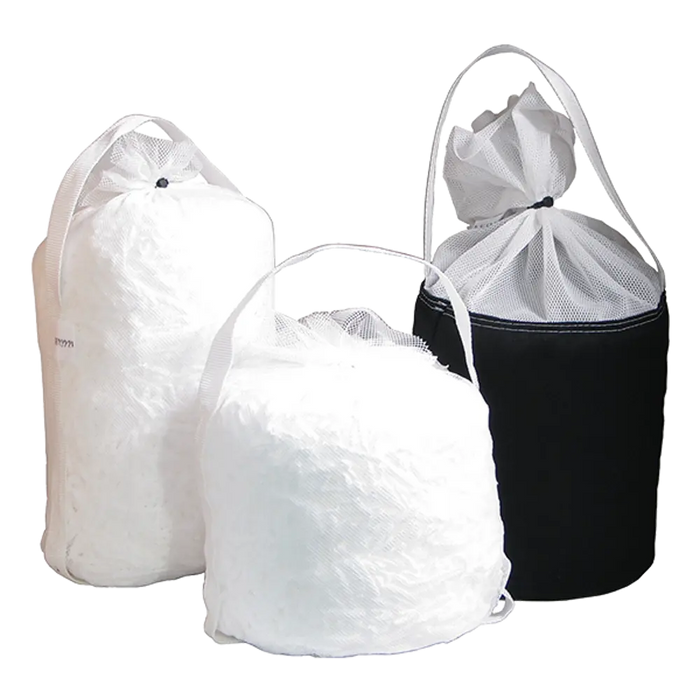

Replacement Service Kits

Always confirm the correct replacement service kit for your installed separator configuration before ordering.

Important: Proper separator sizing depends on combined compressor capacity, lubricant type, operating conditions, and condensate production. Treated condensate must meet applicable local wastewater discharge regulations before disposal.

Frequently Asked Questions

1. What size compressed air system can the JORC SEPREMIUM 350i handle?

The JORC SEPREMIUM 350i is designed for compressed air installations with a maximum combined compressor capacity of 350 CFM. If multiple compressors discharge condensate into the same separator, their combined rated capacities must be considered during sizing. Operating conditions, oil carryover, and condensate production should also be evaluated to ensure proper separator performance.

2. What is the difference between the KA, JN, and PG versions of the JORC SEPREMIUM 350i?

The KA version (9810 JC) is intended for conventional mineral-based and compatible synthetic compressor oils, while the PG version (9810 JB) is designed for polyglycol lubricants and compatible stable condensate emulsions. The JN version (9810 JN) uses JORC's neutral filtration configuration, which should be matched to the specific lubricant application. Selecting the correct filtration media is important for reliable oil separation and maintenance performance.

3. What does the element-life indicator on the JORC SEPREMIUM 350i do?

The SEPREMIUM 350i includes a visual element-life indicator that helps maintenance personnel monitor filtration element condition. This provides a convenient indication of when filter replacement may be necessary, reducing guesswork during routine maintenance. Operators should also test treated condensate periodically to verify proper separator performance.

4. How often should the JORC SEPREMIUM 350i filter elements be replaced?

Filter replacement intervals depend on compressor operating hours, lubricant carryover, condensate volume, and filtration loading. The SEPREMIUM 350i features replaceable filtration elements, a visual element-life indicator, and service drains to simplify routine maintenance. Always use the correct service pack for the installed lubricant configuration and follow JORC's servicing instructions.

5. How does the JORC SEPREMIUM 350i compare with the SEPREMIUM 160i?

The SEPREMIUM 350i is rated for compressed air installations up to 350 CFM, compared with 160 CFM for the SEPREMIUM 160i. The 350i features a three-stage filtration system with two treated polypropylene elements and an activated carbon polishing stage, along with a visual element-life indicator and overflow indicator. The appropriate separator depends on compressor capacity, condensate volume, lubricant requirements, and desired maintenance features.

6. What oil separation performance does the JORC SEPREMIUM 350i provide?

The SEPREMIUM 350i uses three-stage filtration to separate compressor oil from condensed water, with a manufacturer-stated target residual oil content below 10 ppm. Its treated polypropylene filtration elements capture oil contamination before a final activated carbon stage further polishes the condensate. Actual discharge quality depends on proper sizing, lubricant chemistry, filtration condition, and operating conditions.

7. Can the JORC SEPREMIUM 350i be used with zero-air-loss and timer-controlled condensate drains?

Yes, the SEPREMIUM 350i operates with JORC timer-controlled and level-sensed condensate drains, including compatible zero-air-loss models. Condensate collected from compressors, air receivers, refrigerated air dryers, and inline filters can be routed to the separator using suitable collection piping. The separator's brass hose connections simplify installation and routine servicing.

8. Can the JORC SEPREMIUM 350i handle Ingersoll Rand Ultra Coolant or other specialized compressor oils?

JORC identifies special SEPREMIUM versions for applications involving Ultra Coolant, Sigma Mol, and Roto-Inject compressor lubricants. These formulations may require specialized filtration media because their condensate characteristics can differ from conventional mineral-oil systems. Contact Compressed Air Advisors with your compressor model and lubricant information to verify the appropriate configuration before ordering.

Why Buy from Compressed Air Advisors?

At Compressed Air Advisors Online, we specialize in industrial compressed air equipment and condensate management solutions. Our knowledgeable team can help you select the correct JORC oil/water separator based on compressor capacity, lubricant type, and operating requirements.

• Expert Technical Support: Professional assistance with separator sizing, lubricant compatibility, and condensate treatment requirements.

• Competitive Pricing: Excellent value on JORC oil/water separators, replacement service kits, and condensate management equipment.

• Free Shipping: Free freight to the contiguous 48 United States.

• Complete Compressed Air Solutions: Air compressors, refrigerated air dryers, filtration equipment, condensate drains, oil/water separators, and replacement maintenance components.

Order Your JORC SEPREMIUM 350i Today

The JORC SEPREMIUM 350i Serviceable Oil/Water Separator delivers dependable condensate treatment for compressed air systems up to 350 CFM. Its three-stage filtration, visual element-life monitoring, integrated service drains, and overflow indicator make it a practical choice for industrial facilities seeking reliable performance and simplified maintenance.

Select the appropriate KA, JN, or PG lubricant configuration when ordering, or contact Compressed Air Advisors for expert assistance with sizing and compatibility.
