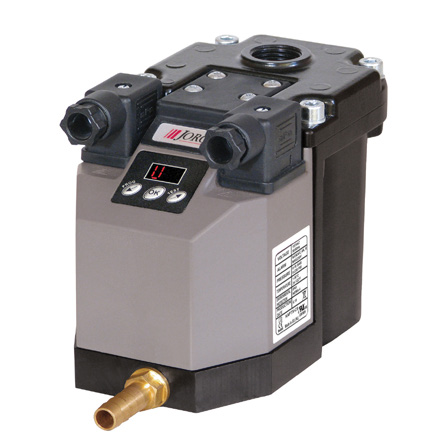

JORC SMART-GUARD-D-LUX 3623 WU Programmable Zero Air Loss Drain - 3,500 CFM
The SMART-GUARD-D-LUX combines electronic zero air loss condensate removal with digital programming options and remote alarm contacts. Part 3623 WU is the 115 VAC configuration for compressed air applications operating at up to 230 PSI.
Key Features
- Digital programming options for drain operation
- Electronic zero air loss condensate removal
- N/O and N/C alarm contacts for external monitoring
- For applications up to 3,500 CFM
- 115 VAC power supply
Specifications
| Manufacturer part number / SKU | 3623 WU |
|---|---|
| Series | SMART-GUARD-D-LUX |
| Application capacity | Up to 3,500 CFM; confirm condensate load |
| Supply voltage | 115 VAC |
| Operating pressure | 0-230 PSI |
| Alarm contacts | N/O and N/C |
| Operation | Electronic level sensing with digital programming options |
Optional Service Kit and Accessories
Sold separately. The following items appear in JORC's shared SMART-GUARD service-parts section. Confirm fit, voltage, connection size and D-LUX compatibility before ordering.
| Part Number | Description |
|---|---|
| 34000 | SMART-GUARD service kit; confirm suitability for your D-LUX revision |
| JBVY-050 | Ball valve strainer |
| 9021 | Wall mounting bracket |
| 38134 | Drain heater, 230 VAC |
| 38135 | Drain heater, 115 VAC |
| 9049 | Drain heater T-adapter |
Contact Compressed Air Advisors for assistance selecting or ordering these items.
Shipping and Availability
Free standard shipping on eligible domestic orders of $199 or more. Destination restrictions and expedited charges may apply. Contact us for current availability and lead time.
Complete Your Condensate System
Compare alternatives in our zero-loss condensate drain collection. Consider an appropriately sized JORC SEPREMIUM oil/water separator for treating oily condensate discharged from your system.
Frequently Asked Questions
What is the manufacturer part number?
The part number is 3623 WU. This price-guide configuration is 115 VAC with N/O and N/C alarm contacts.
What makes the D-LUX different from the standard SMART-GUARD?
The D-LUX adds digital programming options for users who need programmable drain operation and alarm monitoring.
What is the operating pressure range?
The rated range is 0-230 PSI. For pressures above 230 PSI, select a suitably rated high-pressure drain.
What do N/O and N/C refer to?
They describe the normally open and normally closed alarm contacts for an external monitoring circuit, not the position of the condensate valve.
Does this listing offer other voltages?
This listing covers the 115 VAC 3623 WU configuration in the price guide. Contact us if you need another configuration.
Are the service kit and accessories included?
No. Optional service parts, mounting hardware, strainers and heater accessories are sold separately. Confirm D-LUX compatibility before ordering.
How do I choose between MINI and D-LUX?
The MINI is intended for compact filter and dryer applications up to 350 CFM. The D-LUX provides digital programming for larger applications up to 3,500 CFM.
Does it qualify for free shipping?
Yes, at its current selling price it qualifies for free standard shipping on eligible domestic orders of $199 or more. Destination restrictions and expedited charges may apply.
