Jorc Smart Guard Mini AL - Compact Zero Loss Condensate Drain with Alarm, up to 350 CFM, 1/2" NPT

Original price $342.00 - Original price $342.00
Original price
$342.00 - $342.00
Current price $342.00
SKU 3602 U1

Lead Time:

Generally Ships in 1-2 Days

Voltage: 230 VAC
Alarm Mode: Normally Open (N/O)


On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

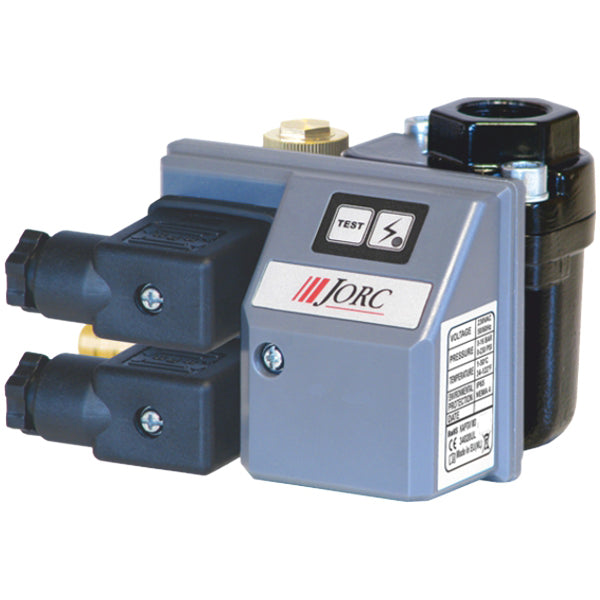

The SMART-GUARD-MINI-AL is an electronic zero air loss drain with an alarm feature (potential free relay), suitable for applications up to 350 CFM (compressor capacity). The alarm contact options are: U1 (Normally open contact) or U2 (Normally closed contact).

This exceptionally versatile and compact drain is available as a stock item in multiple voltage options, offering a pressure range from 0 to 230 psi and only weighs one lbs.

With features such as a test button, LED indication and automatic blockage detection, this energy saving electronic drain is the optimum choice for reliable, condensate removal when space is limited (overall height only 2,9”).

 To simplify the installation in restrictive height conditions, the side-inlet adapter is a useful tool.

The SMART-GUARD-MINI-AL’s incredible compact size is a real benefit in applications such as refrigerated dryers and filters.

  • Extremely compact and lightweight unit.

  • True zero air loss solution.

  • One model covers all compressor capacities up to 350 CFM

  • Visual alarm (LED indication).

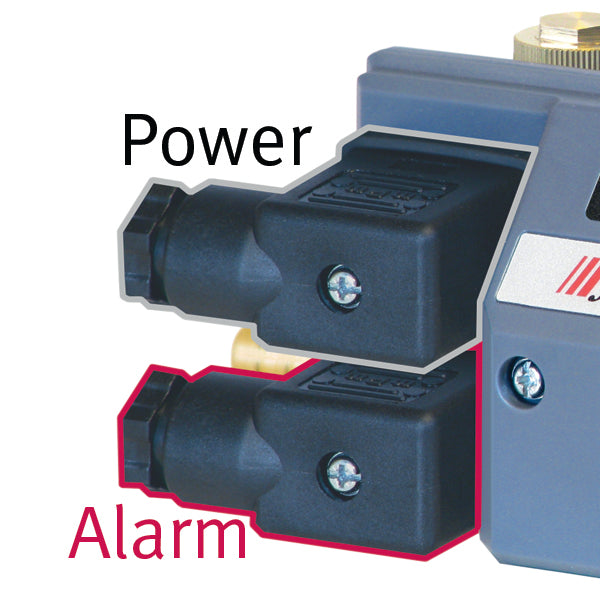

  • Incorporating an alarm output contact (potential free relay).

  • Easy to install due to its low inlet height.

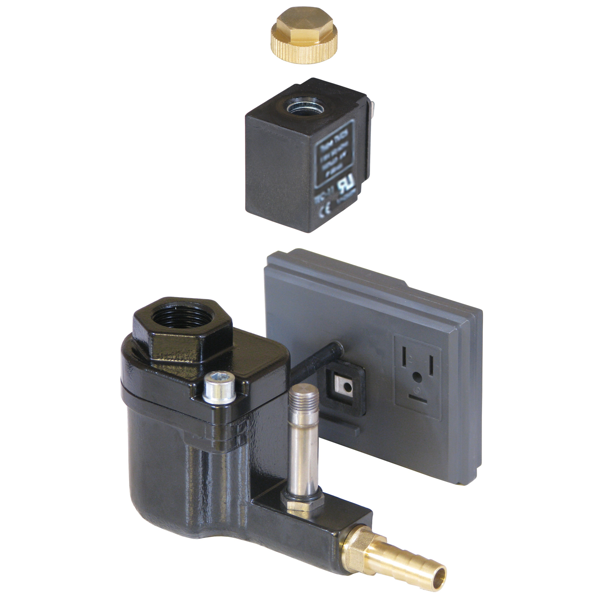

  • External valve position allows for fast and easy maintenance.

  • Direct acting valve with FPM seal.

  • Robust corrosion resistant aluminium housing.

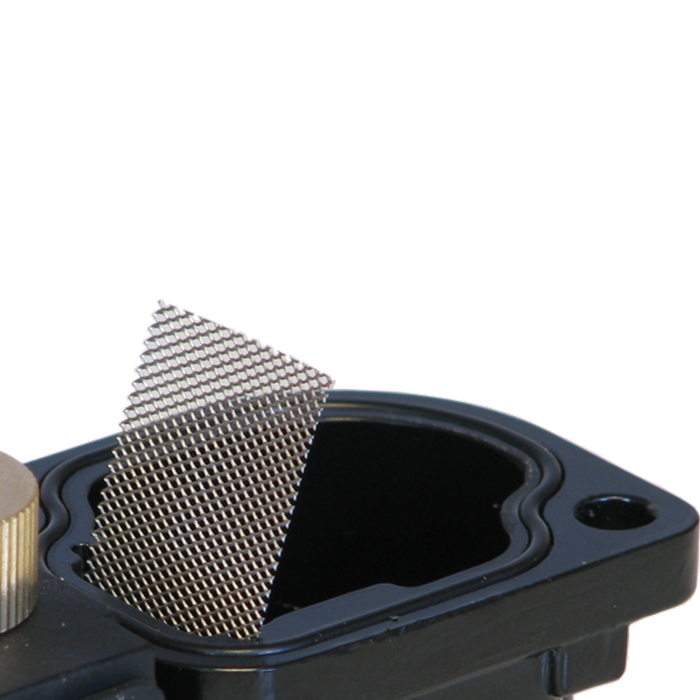

  • A large integrated mesh strainer.

Dimensions Instruction Manual Brochure Video
