Jorc SMART-GUARD-MINI - Zero Loss Condensate Drain, 1/2 NPT Inlet, 0-230 PSIG

Original price $292.00 - Original price $292.00
Original price
$292.00 - $292.00
Current price $292.00
SKU 3622

Lead Time:


Voltage: 115 VAC


On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

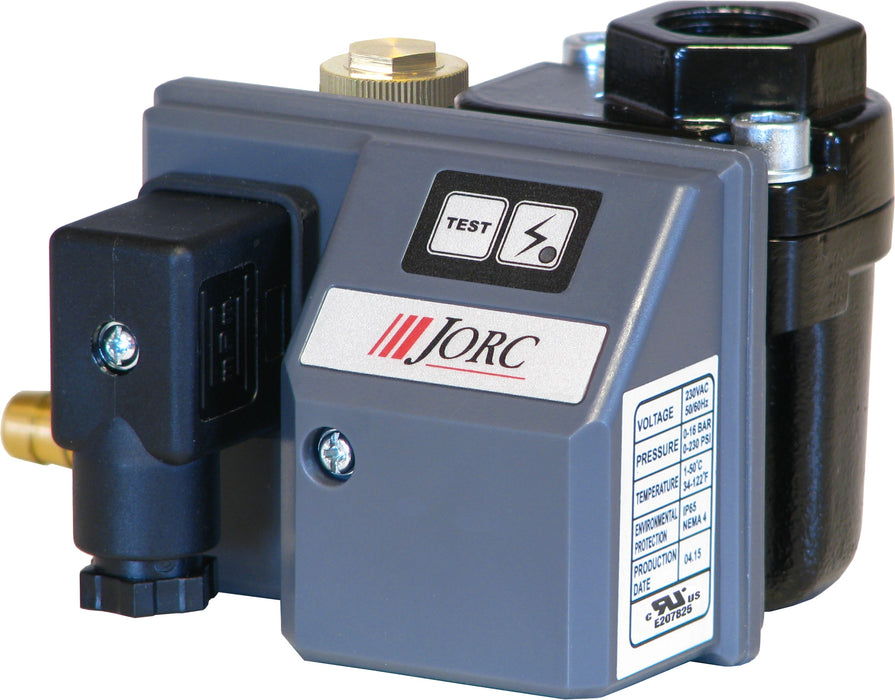

Perfect for filters and refrigerated dryers up to 350 CFM, the SMART-GUARD-MINI zero air loss condensate drain provides effective and efficient condensate removal in an extremely small and lightweight package.

With features such as a test button, LED indicator light and automatic blockage detection, this energy saving electronic drain is the optimum choice for reliable, energy saving condensate removal when space is limited.

A robust 2/2-way capacitive level sensor operates a direct acting valve to discharge condensate without losing any valuable compressed air. An integrated mesh strainer protects the valve from blockage and a test button provides immediate verification of drain function. In addition, an internal sensor automatically detects potential blockages and will pulsate the valve to attempt to clear them.

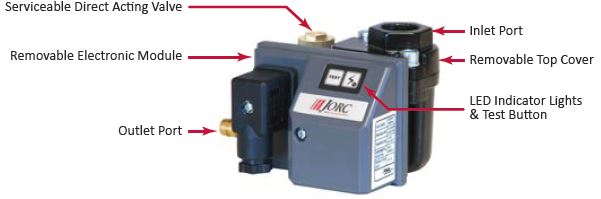

For quick and easy installation and maintenance, all models include an externally mounted valve, a removable electronic module and a removable top cover, allowing the drain to be easily disassembled without disconnecting any pipe work.

The 115VAC version of this drain is supplied with a 6 ft. power cord with plug and the 230VAC version is supplied with a 7 ft. power cord.

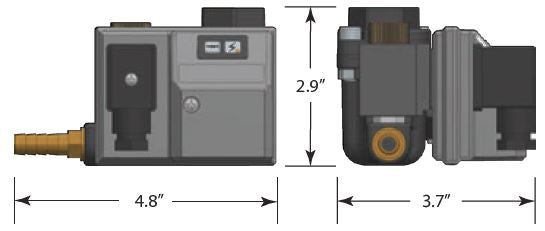

Dimensions Instruction Manual Brochure Reviews
