Jorc TEC-44 - Timer Controlled Condensate Drain


Sku: 4023 BL

Lead Time:


- Select Size

- +
Free Shipping

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

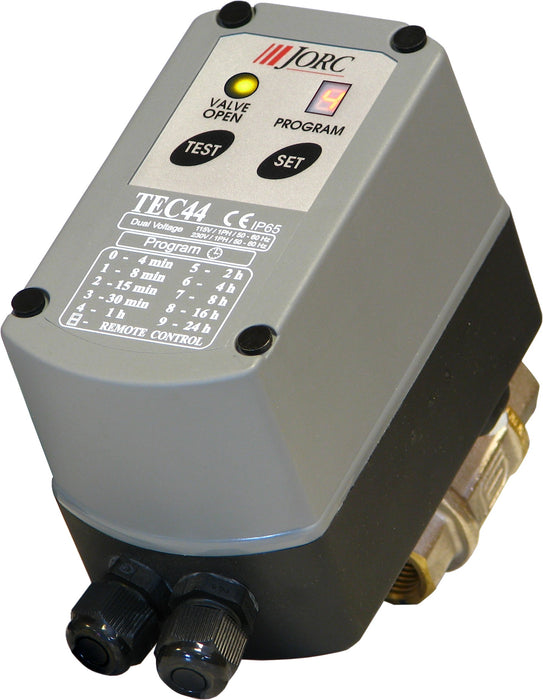

TEC-44 Drains
Timer controlled condensate drains with uncloggable motorized ball valves.

The TEC-44 is the optimum condensate drain for difficult applications with high condensate flows and heavy particulate loads. With a wide, uncloggable ball valve operated by a powerful motor, and battery back-up for power outages, the TEC-44 provides reliable, unstoppable condensate removal when other drains have failed.

With an operating pressure range up to 600 PSI the  TEC-44 has a virtually unlimited capacity, making it suitable for any compressed air application using any type of compressor.

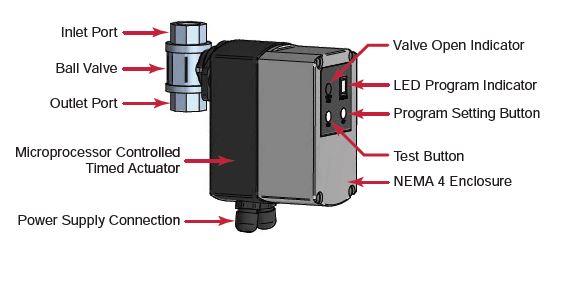

The TEC-44 is controlled via a microprocessor with nine selectable timer settings. An LED indicator indicates the program selected, while a valve open light confirms drain operation. When you need reliable condensate removal, no other drain provides peace of mind like the TEC-44.

The 115VAC version of this drain is supplied with a 6 ft. power cord with plug and the 230VAC version is supplied with a 7 ft. power cord.

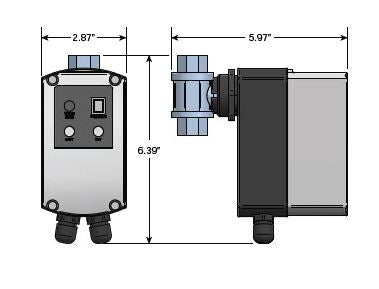

Dimensions Instruction Manual Brochure Reviews
