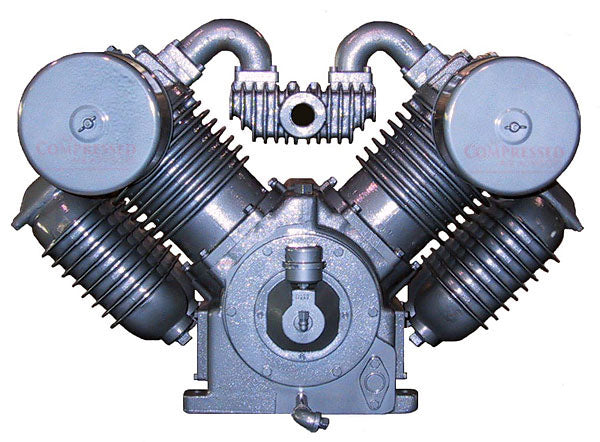

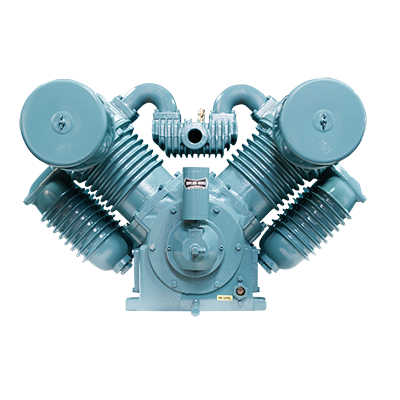

Saylor-Beall 9000 Bare Reciprocating Air Compressor Pump – Splash Lubricated (Includes Flywheel)
61.2 CFM @ 175 PSI | 15–20+ HP | Industrial Duty | Made in the USA
Maximum Output. Industrial Muscle. Built for Non-Stop Demand.
The Saylor-Beall Model 9000 is where you step into serious production air. Delivering 61.2 CFM at 175 PSI of real usable air, this heavy-duty, two-stage pump is built for operations that run hard, run long, and don’t tolerate downtime.
Manufactured in Michigan with rugged cast iron construction and precision-machined components, the 9000 is engineered for high-output performance, durability, and long service life in demanding industrial environments.
If your operation has outgrown mid-range pumps, this is the upgrade that keeps up.
Built for High-Volume, Industrial Applications
This is not a step up—it’s a different class of machine.
- Heavy-Duty Cast Iron Construction – Crankcase, cylinders, and heads built for extreme durability and long-term use
- Splash Lubrication System – Proven, low-maintenance design for reliable operation in demanding environments
- Two-Stage Compression – Higher efficiency, lower temperatures, and improved system reliability
- Low RPM Operation – Reduces wear, heat, and extends pump life
- Disc-Type Valves – Maximizes airflow and long-term performance
- Finned Intercooler – Enhances cooling between compression stages
- Centrifugal Unloader – Provides smooth, no-load startup to reduce electrical strain
- Flywheel Included – Ready for system integration or replacement installs
Performance Specifications – Model 9000
- Delivered Air: 61.2 CFM @ 175 PSI
- Motor Range: 15 – 20+ HP
- Pump RPM: 480 – 605
- Shipping Weight: ~700+ lbs (varies by configuration)
- Cylinder Configuration: 2 Cylinders (Large Bore)
- Built for High CFM Output with Lower RPM Operation
👉 What matters: 61.2 CFM at 175 PSI—serious air for serious operations.
Head Unloader Option – Simple & Clear
This pump is available with an optional Head Unloader configuration, depending on your system design.
No Head Unloaders (Standard)
- Compressor shuts off at full pressure
- Restarts when air is needed
- Best for standard applications
Yes – Head Unloaders (Optional Upgrade)
- Pump continues running at full pressure in an unloaded state
- Motor stays running instead of cycling on/off
- Reduces wear on motors, starters, and electrical components
- Ideal for high-demand, continuous-use environments
⚠️ Important
Head unloaders are designed for systems operating in continuous (unloaded) mode.
If your system currently runs start/stop, additional controls or modifications may be required.
Ideal Applications
- High-production manufacturing facilities
- Large woodworking and millwork operations
- Heavy-duty automotive and fleet service centers
- Agricultural processing and grain systems
- Any operation requiring maximum CFM with consistent demand
