Description

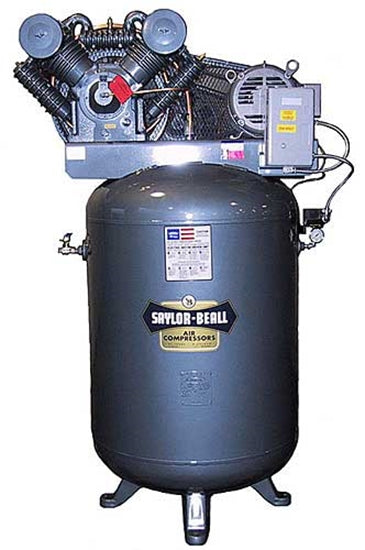

Saylor-Beall VT-755 Vertical Two-Stage Air Compressor
10 HP | 34.4 CFM @ 175 PSI | 120 Gallon Tank | Single or Three Phase
The Saylor-Beall VT-755 vertical two-stage air compressor is engineered for facilities that require serious industrial airflow, dependable high-pressure performance, and true heavy-duty durability. Designed, machined, assembled, and tested in St. Johns, Michigan, the VT-755 delivers exceptional compressed air output while offering one of the rarest configurations in the industry: a true 10 horsepower single-phase reciprocating air compressor.
For shops and facilities without access to three-phase electrical service, the VT-755 fills a critical gap in the compressed air market. Most manufacturers simply do not offer a genuine 10 HP single-phase compressor capable of delivering industrial-grade airflow and durability. The VT-755 provides a powerful solution for automotive repair facilities, woodworking operations, fabrication shops, agricultural buildings, and industrial maintenance departments that need high airflow without upgrading utility power infrastructure.
The VT-755 is available with a large 120-gallon vertical air receiver that provides substantial reserve air capacity, reduced compressor cycling, and more stable system pressure during high-demand operation. This makes it ideal for facilities running multiple pneumatic tools, plasma systems, sanders, grinders, paint operations, and other air-intensive equipment.

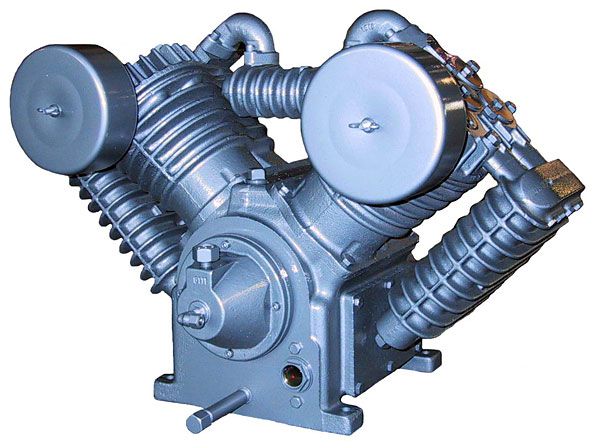

Powered by Saylor-Beall’s industrial-duty 707 cast-iron splash lubricated two-stage compressor pump, the VT-755 delivers an impressive 34.4 CFM at 175 PSI. The heavy-duty pump features precision-honed cylinders, four piston rings for superior oil control and efficiency, oversized tapered roller bearings, replaceable insert bearings, and a rugged cast-iron crankcase engineered to minimize vibration and maximize service life.
A finned cast-iron intercooler improves cooling efficiency while the centrifugal unloader provides smooth no-load startup to reduce electrical strain and improve long-term reliability. Built for demanding industrial use, the VT-755 is designed to perform reliably in environments where compressed air is mission critical.
Key Features & Benefits
- True 10 HP industrial-duty reciprocating air compressor
- Rare single-phase 10 HP configuration available
- Also available in three-phase electrical configurations
- Delivers 34.4 CFM at 175 PSI
- Heavy-duty 707 cast-iron two-stage compressor pump
- Large 120-gallon vertical air receiver
- Reduced compressor cycling and improved reserve air capacity
- Industrial splash lubricated design
- Precision-honed cylinders improve efficiency and oil control
- Four piston rings reduce blow-by and oil carry-over
- Oversized tapered roller bearings extend crankshaft life
- Finned cast-iron intercooler improves cooling performance
- Centrifugal unloader reduces startup strain
- Optional magnetic starter available
- Built for continuous professional and industrial operation
- Manufactured in the USA since 1915
Ideal Applications
- Automotive repair and fleet maintenance facilities
- Woodworking and cabinet manufacturing shops
- Fabrication and welding operations
- Industrial maintenance departments
- Agricultural service buildings
- Manufacturing facilities without three-phase power
- Pneumatic production equipment
- Plasma cutting systems
- Multi-user compressed air systems
- Paint booth and finishing applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | Saylor-Beall VT-755 |
| Horsepower | 10 HP |
| Pump Model | 707 |
| Compressor Type | Two-Stage Reciprocating |
| Lubrication Type | Splash Lubricated |
| Tank Size | 120 Gallon Vertical |
| Delivered Airflow | 34.4 CFM @ 175 PSI |
| Displaced Airflow | 46 CFM |
| Maximum Pressure | 175 PSI |
| Pump Speed | 845 RPM |
| Tank Orientation | Vertical |
| Electrical Options | Single-Phase or Three-Phase |
| Starter Option | Optional Magnetic Starter |
| Country of Manufacture | USA |
Frequently Asked Questions
Is the Saylor-Beall VT-755 really available in single-phase power?
Yes. The VT-755 is one of the very few true 10 HP reciprocating air compressors available in a single-phase configuration. This makes it an ideal solution for facilities that require industrial airflow but do not have access to three-phase electrical service.
What advantages does the VT-755 offer over smaller single-phase air compressors?
The VT-755 delivers substantially higher airflow at 34.4 CFM while maintaining true industrial-duty durability. Compared to smaller compressors, it provides greater reserve air capacity, reduced cycling, improved pressure stability, and the ability to support multiple high-demand pneumatic tools simultaneously.
Can the Saylor-Beall VT-755 run an entire automotive or fabrication shop?
Yes. With 34.4 CFM at 175 PSI and a large 120-gallon air receiver, the VT-755 is capable of supporting multiple technicians and demanding compressed air applications. It is commonly used in automotive repair facilities, fabrication shops, woodworking operations, and industrial maintenance environments.
How does the VT-755 compare to rotary screw compressors?
The VT-755 offers a lower-cost alternative for facilities needing high airflow without investing in a rotary screw compressor system. For shops without three-phase power, the VT-755 provides industrial-level performance in a reciprocating compressor platform while avoiding the higher upfront cost and electrical requirements of many rotary screw units.
Why is a two-stage compressor beneficial for high-pressure applications?
Two-stage compressors compress air in multiple steps, allowing them to achieve higher pressures more efficiently while generating less heat. This improves durability, efficiency, and airflow consistency, making the VT-755 ideal for demanding industrial applications requiring up to 175 PSI.
Should I add a magnetic starter to the VT-755 compressor?
Yes. A magnetic starter is strongly recommended for 10 HP compressor installations because it improves electrical safety, enhances motor protection, and helps manage startup loads. This is especially important in high-demand commercial and industrial environments.
What maintenance is required for the Saylor-Beall VT-755?
Routine maintenance includes monitoring compressor oil levels, changing oil at scheduled intervals, draining tank condensation daily, inspecting belts, and replacing intake filters when necessary. Preventative maintenance helps maximize compressor reliability, airflow performance, and long-term service life.
What industries commonly use the VT-755 air compressor?
The VT-755 is widely used in automotive repair facilities, fleet maintenance operations, woodworking shops, manufacturing plants, agricultural service buildings, fabrication shops, and industrial maintenance departments. It is especially valuable in facilities that need high airflow but only have single-phase electrical service available.
