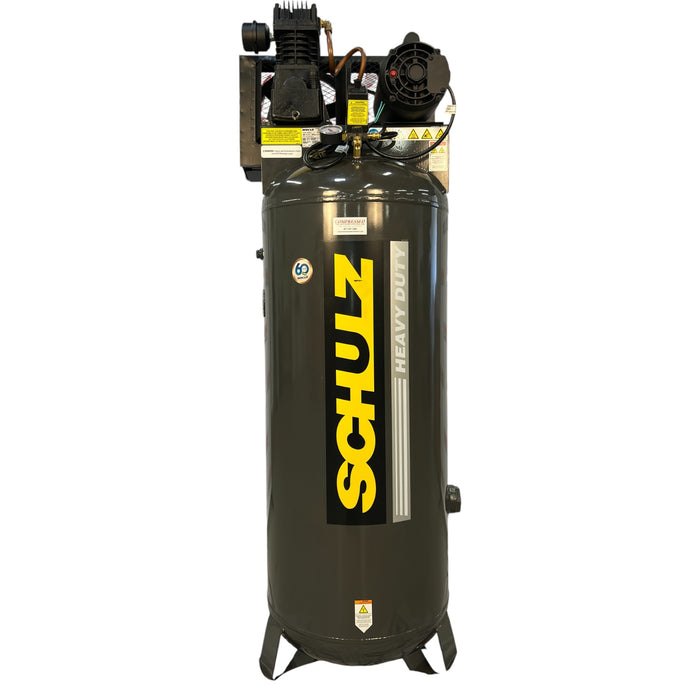

Schulz L-Series Heavy Duty Air Compressor – Model 360VL18X-1 – 3 HP, 60 Gallon, 220V Single Phase (PN: 932.3438-0)

Take on the toughest industrial and commercial tasks with the Schulz L-Series Heavy Duty Air Compressor, specifically designed for repair shops, service stations, tire shops, body shops, and small industries. The Model 360VL18X-1 is built with a robust 3 HP WEG Electric Motor, ensuring exceptional durability and performance in demanding environments. Equipped with a 145 PSI cast iron pump, this compressor offers lasting power and efficiency.

Key Features:

• 3 HP Single Phase Motor: Reliably powers the unit for continuous commercial-grade use.
• 1050 RPM: Efficient operation with reduced wear and tear on the motor and pump.
• 220V Operation: Ideal for professional and industrial applications with easy integration into most workshop power setups.
• L-Series Cast Iron Pump (Model: MSL18 MAX): Designed for heavy-duty applications with enhanced heat dissipation and strength.
• 60 Gallon Vertical ASME Tank: Powder-coated for superior rust resistance and durability, complete with safety valves for reliable operation.
• 2-Year Pump Warranty: Ensures peace of mind and long-lasting performance.

Built for Longevity and Quiet Operation:

• Cast Iron Construction: Built to last with high-strength materials that endure the rigors of industrial environments.
• Deeper Cylinder Fins: Improved heat dissipation keeps the compressor running cooler for extended periods.
• Oversized Main Bearings: Enhances pump longevity and reduces wear.
• Swedish Steel Valves: Precision-engineered for maximum airflow and efficiency.
• CNC Machined Components: Guarantees a perfect fit and smooth operation, enhancing overall performance.

Safety and Maintenance:

• Solid Steel Belt Guard: Protects the belt and operators while maintaining airflow to the pump.
• Notched Belts: Standard feature that improves drive efficiency and longevity.

Built to Handle:

• Recommended For: Repair shops, service stations, tire shops, body shops, and small industrial applications.
• Powder-Coated Components: Superior protection against rust and corrosion, ensuring the unit stays in prime condition for years to come.

Specifications:

• Motor: 3 HP, Single Phase, 220V
• Pump RPM: 1050
• Max PSI: 145
• Tank Size: 60 Gallon (Vertical, ASME-certified)
• Weight: Approx. 571 lbs.

This Schulz L-Series air compressor is the ultimate workhorse for demanding applications. Its rugged build, low RPM pump, and high efficiency make it a must-have for any commercial or industrial workshop. With a 1-year unit warranty and a 2-year pump warranty, you’re investing in superior performance and reliability.

Click Here to Download the Schulz Reciprocating Compressor Manual

Click Here to Open The Schulz L-Series Brochure
