Description

ADS Series Non-Cycling Refrigerated Air Dryers

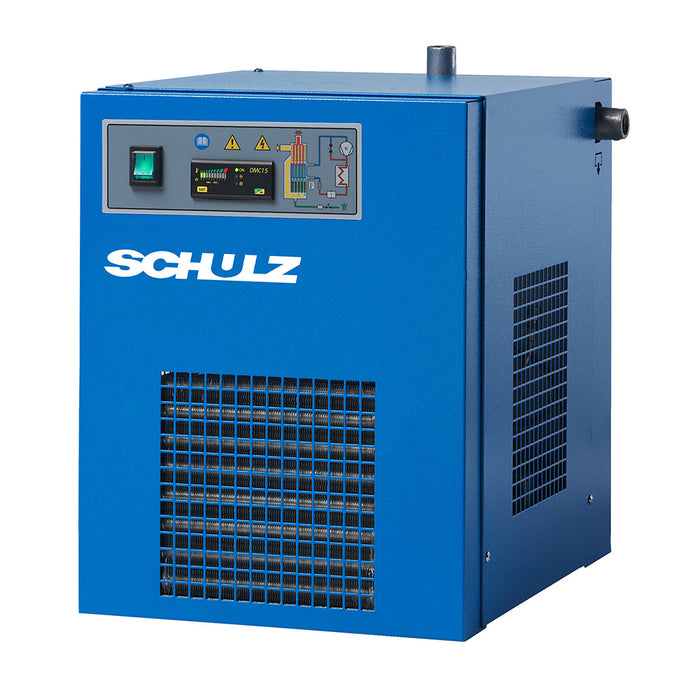

The Schulz of America ADS-150 Refrigerated Air Dryer offers up to 150 CFM of dry air. It has a 115V/1Ph power supply and uses non-cycling technology for efficient and reliable performance. Enjoy highly accurate dew point temperatures in the range of 40-50°F.

The Schulz ADS Series of non cycling compressed air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removed and allow immediate access to internal components. All Schulz ADS dryers are equipped with a quick-connected electronic automatic drain valve which does not require any special tools for maintenance and cleaning.

Performance
Schulz ADS dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated.

Economy

Schulz ADS dryers are designed to match the displacement of the air compressors. Consequently, it is not necessary to oversize the dryer, resulting in savings in energy consumption.

Functionality

The dryer's operation is monitored by an electronic controller with LED indicators which show the temperature and dew point, controls the drain valve with a timer and the condenser fan with a probe. The refrigerant is circulated through the system using high-efficiency compressors. These compressors are a totally new design that brings low levels of power consumption and high dependability.

Specs:

Connection: 1-1/2" NPTF

Electrical: 115V/1Ph

Click Here To Download Schulz ADS Series Dryer Brochure
