Schulz of America 780HV30X 7.5hp Heavy Duty V-Series Reciprocating Air Compressor, 80 Gallon Horizontal Tank, 20.1 CFM @ 175 PSI

Original price $4,485.00
Original price $4,175.00 - Original price $4,550.00
Original price $4,485.00
Current price $3,108.00
$3,108.00 - $3,458.00
Current price $3,108.00
Save $1,377.00 Save $1,377.00
SKU 932.9347-0

Lead Time:

Generally Ships in 2-4 Days

Voltage: 230/1

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

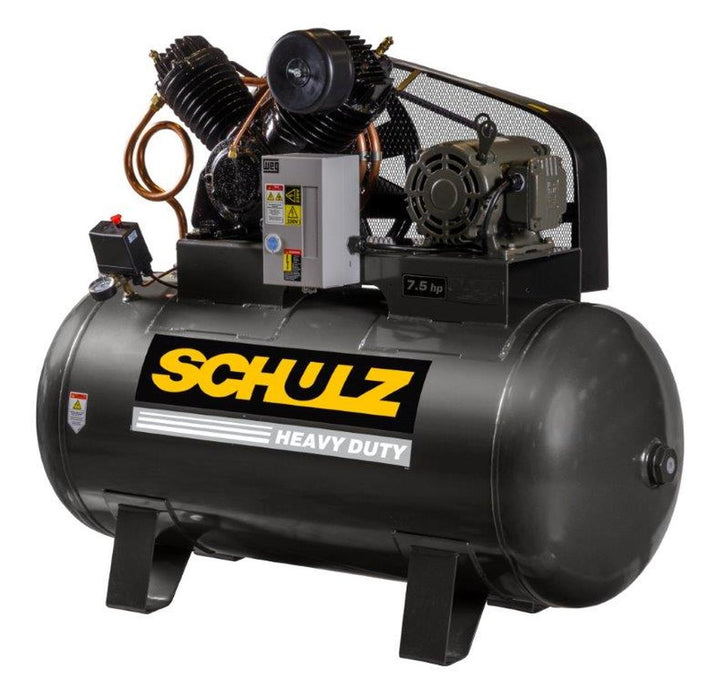

Schulz 7580HV30X Heavy Duty V-Series Air Compressor – 80 Gallon Horizontal Tank

The Schulz 7580HV30X Heavy Duty V-Series Air Compressor is built for high-demand industrial applications, offering power, reliability, and efficiency in a durable package. Equipped with an 80-gallon ASME-certified horizontal tank, this two-stage compressor delivers high performance while maintaining low RPMs, ensuring extended life and reduced wear.

Why Choose the Schulz 7580HV30X?

  • V-Series Cooling Efficiency: The V-cylinder design significantly improves cooling, lowering air compression temperatures and ensuring more efficient and consistent air production.
  • Heavy Duty Construction: Built with cast iron blocks and oversized components, this compressor is engineered for rugged, continuous use in the most challenging environments.
  • Ready to Use: Prewired with a magnetic starter, this compressor is easy to install and operate. Its plug-and-play design minimizes setup time, so you can start working immediately.
  • High-Pressure Output: With a maximum operating pressure of 175 PSI and an air displacement rate of 20.1 CFM, the Schulz 7580HV30X is ideal for tasks requiring high air flow and pressure.
  • Enhanced Safety & Reliability: ASME-certified safety valves and air receivers ensure maximum protection, while the 2-year pump warranty provides peace of mind for long-term operation.

Key Specifications:

  • Air Displacement: 20.1 CFM
  • Motor Power: 7.5 HP
  • Maximum Operating Pressure: 175 PSI
  • Tank Size: 80 gallons (horizontal)
  • Voltage Options: 230V/1ph, 230V/3ph, 460V/3ph
  • Compressor Unit: Two-stage with 2-V pistons

Applications:

  • Heavy-duty industrial operations
  • Service stations
  • Tire shops
  • Woodworking Shops
  • Various industrial facilities

For industries that require a reliable and efficient air compression solution, the Schulz 7580HV30X offers unmatched durability and performance. Whether you're running an industrial shop or a service station, this compressor is built to handle the toughest demands, delivering consistent results day in and day out.
