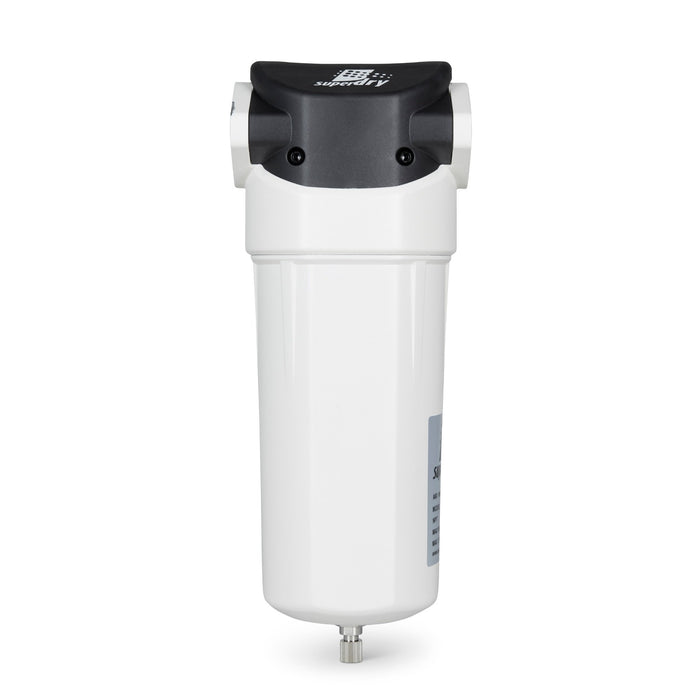

Super-Dry FSD-185-W - Water Separator Up To 180 CFM, PN: 330-120

Original price $495.00 - Original price $495.00
Original price
$495.00
$495.00 - $495.00
Current price $495.00
SKU 330-120

Lead Time:

Generally Ships in 1-2 Days

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

The FSD Series Water Separators have been designed for the efficient removal of bulk liquid contamination from compressed air.  The Super-Dry water separators use centrifugal motion to force liquid water out of compressed air.  Each centrifugal separator comes with a built-in float drain and an internal spinner.  That removes large quantities of condensate by centrifugal action.  Centrifugal water separator designs are installed up-stream of a compressed air dryer or downstream of aftercoolers or air receivers.

  • INLET / OUTLET PORTS: 1" NPT

  • AIR FLOW @ 100 PSIG: 180 SCFM

  • MAXIMUM INLET PRESSURE: 232 PSIG

  • MAXIMUM INLET TEMPERATURE: 176°F (80°C)

  • DRAINAGE: FLOAT DRAIN (INCL.) OR TIMER DRAIN (OPTION)
