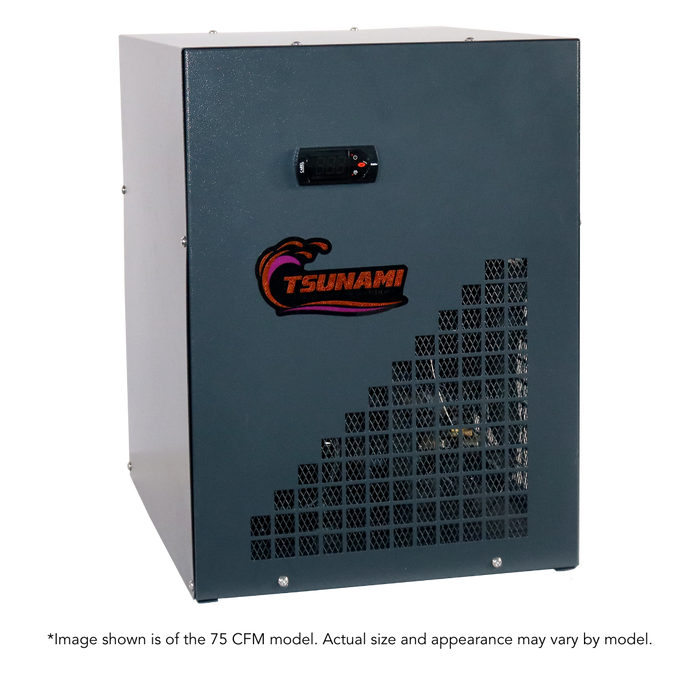

Tsunami RSD-015 15 CFM Refrigerated Air Dryer – 3/4″ NPT, 115V
The Tsunami RSD-015 Refrigerated Air Dryer provides reliable moisture removal for compressed air systems up to 15 CFM. Designed for shops, small manufacturing systems, and light industrial applications, the RSD-015 delivers a consistent refrigerated dew point while helping protect air tools, equipment, piping, and finished products from moisture-related problems.
With 115V single-phase power, 3/4″ NPT connections, an integrated automatic condensate drain, and a compact footprint, the RSD-015 is an easy-to-integrate solution for smaller compressed air systems.
Full Product Description
Moisture is one of the biggest enemies of a compressed air system. The Tsunami RSD-015 Refrigerated Air Dryer removes excess water vapor by cooling compressed air, condensing the moisture, separating it from the air stream, and automatically discharging the collected condensate.
Rated for 15 CFM, the RSD-015 is designed for general-purpose compressed air applications where a refrigerated dew point is appropriate. The dryer maintains an approximate 37.4°F to 50°F pressure dew point, helping reduce water in downstream piping, pneumatic tools, machinery, and production processes.
Tsunami's air-to-air heat exchanger uses the incoming warm compressed air to reheat the treated air leaving the dryer while simultaneously pre-cooling the incoming air. This efficient heat-transfer process contributes to a compact design and low pressure drop.
The RSD-015 operates on standard 115V/1-phase/60 Hz power, includes an electronically controlled condensate drain, and is designed for automatic operation once properly installed.
Key Features
- 15 CFM rated airflow
- Refrigerated compressed air drying
- Approximate 37.4°F to 50°F dew point
- Less than 1 PSI pressure drop
- 3/4″ NPT inlet and outlet connections
- 115V / 1 Phase / 60 Hz
- Integrated automatic condensate drain
- Energy-efficient non-cycling operation
- Compact design for smaller compressed air systems
- Maximum inlet pressure of 232 PSI
- Maximum inlet air temperature of 130°F
- Low operating sound level of less than 70 dB
- R134a refrigerant
Benefits
- Helps prevent moisture-related corrosion in air piping and equipment
- Reduces water reaching pneumatic tools and machinery
- Helps improve paint, finishing, and manufacturing results
- Protects downstream filtration and compressed air equipment
- Automatic condensate removal eliminates routine manual draining
- Compact footprint simplifies installation in smaller shops
- Low pressure drop helps preserve available system pressure
- Designed for reliable everyday operation
Best For
The Tsunami RSD-015 is well suited for smaller compressed air systems used in:
- Automotive and repair shops
- CNC and small machining applications
- Woodworking shops
- Metal fabrication
- Pneumatic tools
- Small manufacturing operations
- Packaging and automation equipment
- Paint and finishing applications
- General shop compressed air systems
Technical Specifications
| Specification | RSD-015 |
|---|---|
| Manufacturer | Tsunami Compressed Air Solutions |
| Model | RSD-015 |
| Dryer Type | Refrigerated Air Dryer |
| Rated Airflow | 15 CFM |
| Air Connections | 3/4″ NPT |
| Maximum Inlet Pressure | 232 PSI |
| Maximum Inlet Air Temperature | 130°F |
| Maximum Ambient Temperature | 115°F |
| Power Supply | 115V / 1 Phase / 60 Hz |
| Power Consumption | 0.18 kW |
| Full Load Consumption | 0.39 kW |
| Nominal Current | 1.77 A |
| Full Load Current | 2.47 A |
| Refrigerant | R134a |
| Refrigerant Charge | 0.66 lb |
| Sound Level | <70 dB |
| Approx. Dimensions (W × D × H) | 13.11″ × 15.43″ × 17.55″ |
| Weight | 39 lb |
| Condensate Drain | Integrated Automatic Drain |
Why Choose the Tsunami RSD-015?
The RSD-015 provides the drying performance needed for smaller compressed air systems without requiring a large industrial dryer. Its combination of 15 CFM capacity, 115V power, automatic condensate removal, compact construction, and high 232 PSI pressure rating makes it an excellent choice for shops that need dependable moisture control with straightforward installation and operation.
Warranty
Tsunami RSD Series refrigerated dryers are covered for 18 months from the factory shipment date or 12 months from installation/start-up, whichever occurs first, with parts and labor coverage subject to Tsunami's warranty requirements.
A properly sized prefilter and non-corrosive upstream piping are required for warranty coverage.
Why Buy from Compressed Air Advisors Online?
Compressed Air Advisors Online specializes in compressed air equipment and air treatment systems. We can help ensure the dryer you select is properly sized for your compressor, operating pressure, inlet temperature, and application.
- Compressed air equipment specialists
- Expert dryer sizing assistance
- Nationwide service and support
- Authorized industrial equipment distributor
- Complete compressed air treatment solutions
- Your Compressed Air Partner
Frequently Asked Questions
What size compressor can the RSD-015 be used with?
The RSD-015 is rated for a maximum airflow of 15 CFM under its rated operating conditions. Dryer capacity should always be checked against the compressor's actual airflow, pressure, inlet air temperature, and ambient temperature.
What dew point does the Tsunami RSD-015 provide?
The RSD Series is designed to provide an approximate 37.4°F to 50°F refrigerated dew point, depending on operating conditions.
Does the RSD-015 have an automatic drain?
Yes. The dryer includes an electronically controlled automatic condensate drain, eliminating the need to routinely drain collected moisture by hand.
What electrical power does the RSD-015 require?
The RSD-015 operates on 115V, single-phase, 60 Hz power.
What size air connections does it use?
The RSD-015 has 3/4″ NPT inlet and outlet connections.
What is the maximum operating pressure?
The maximum rated inlet air pressure is 232 PSI.
Do I need a prefilter before the dryer?
Yes, proper upstream filtration is recommended to prevent particulate and oil contamination from accumulating inside the heat exchanger. A prefilter is also required as part of Tsunami's RSD warranty requirements.
How do I properly size a refrigerated air dryer?
Dryer sizing should consider more than compressor CFM alone. Inlet pressure, inlet air temperature, ambient temperature, and desired outlet dew point can all change the dryer's effective capacity.
