Van Air - Blast Pak Pro-40, Portable Compressed Air Treatment System For 400 CFM Plus-PN: 80-1565

Original price $24,830.00
Original price $24,830.00 - Original price $24,830.00
Original price $24,830.00
Current price $21,304.00
$21,304.00 - $21,304.00
Current price $21,304.00
Save $3,526.00 Save $3,526.00
SKU 80-1565


On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL


VAN Air Systems Blast Pak Pro 40 PN: 80-1565 – The quintessential Portable Compressed Air Drying System designed exclusively for the demands of blasting and painting professionals. When it comes to surface preparation, the importance of dry compressed air cannot be overstated. Moisture in compressed air can lead to clogged blast pots, corroded nozzles, and unwanted flash rusting, resulting in costly re-work. The Blast Pak Pro 40 is engineered to eliminate these issues, ensuring the job is done right the first time.

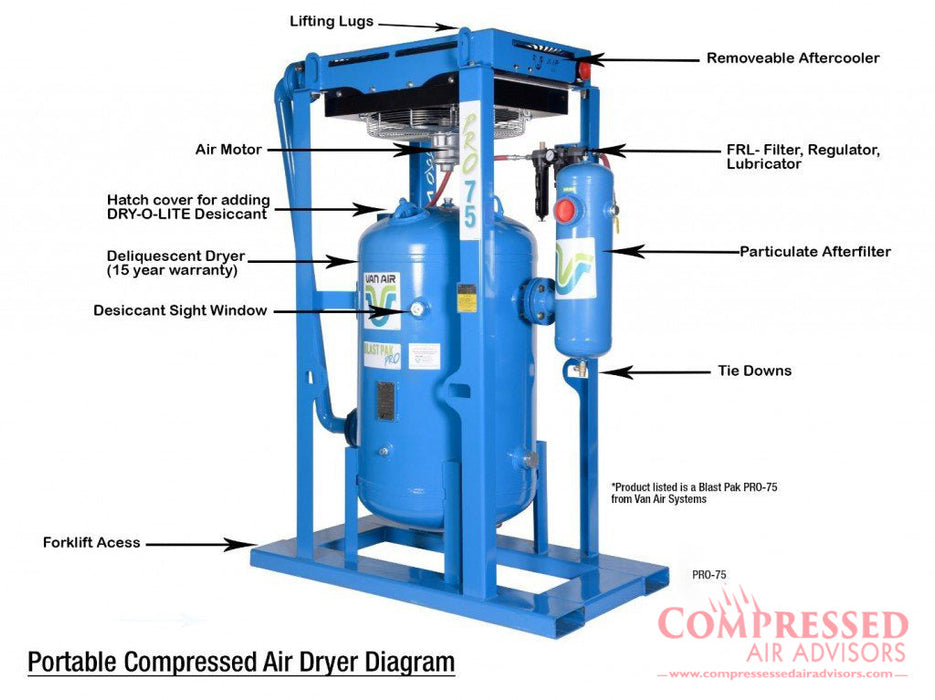

Key Features and Benefits:

  • Plug-n-Play Design: No electricity required, making it ideal for various on-site applications.
  • Durability: Features a two-step interior and exterior paint, enhancing the vessel's life span.
  • Advanced Filtration: Includes an F200 filter and muffler to efficiently eliminate oil residue from the air motor.
  • Ease of Maintenance: Removable aftercooler assembly for straightforward repair or replacement.
  • Connectivity: Features a 3/4" Auxiliary air connection before the dryer for versatile hook-ups.
  • Portability: Designed with lifting lugs and a 4-way access forklift skid, it's easily transportable across worksite locations.
  • Safety Assured: Equipped with tie downs to secure the unit during transportation.
  • Desiccant Monitoring: Two sight windows for easy viewing of the DRY-O-LITE® desiccant levels.
  • Warranty: Comes with a 15-year prorated warranty on the Dryer Pressure vessel (first 5 years at 100%).

Applications: Perfect for mobile abrasive blasting, painting contractors, rail yards, and rental services.


  • Model: PRO-40
  • Part Number: 80-1565
  • Flow Rating (SCFM): 400 SCFM at 100 PSIG, 487 SCFM  @125 PSIG, 574 SCFM  @ 150 PSIG
  • Air Motor (SCFM): 14
  • Connections: 2 NPT In/Out
  • Dimensions: Width 53 in., Height 77 in., Depth 27 in.
  • Weight: 930 lbs (Empty)
  • DRY-O-LITE Per Unit: 400 lbs.

Note: The DRY-O-LITE® desiccant is included with Blast Pak PRO purchases and is shipped separately.

Model Variations: The Blast Pak Pro series also includes models PRO-25, PRO-50, PRO-75, and PRO-100, catering to varied flow rate requirements and applications.

This Blast Pak Pro 40 represents the pinnacle of portable, efficient, and reliable air drying technology, ideal for the rigorous demands of the compressed air industry. Ensure optimal performance in your blasting and painting operations with this state-of-the-art system.

Tech Data

Dimensions Instruction Manual Brochure Video
