Champion DRS10A Air System- 10hp Variable Speed Rotary Screw AIr Compressor, 80 Gallon Tank, Refrigerated Air Dryer, 37 CFM @ 145 PSI

Original price $18,430.00
Original price $18,430.00 - Original price $18,430.00
Original price $18,430.00
Current price $14,833.00
$14,833.00 - $14,833.00
Current price $14,833.00
Save $3,597.00 Save $3,597.00
SKU DRS10A-230/1
Size: 230V/1Ph

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

Innovative, Integrated Design

D Series compressors feature innovative, integrated airend designs that reduce connection points, enhance reliability, and promote superior serviceability. The simplified, reduced component approach extends beyond the airend into the oil and air cooler. This combination cooler results in a reduction in energy consumption, low discharge air temperatures, and an increase in overall system reliability. Couple these service and reliability benefits with the unit’s small footprint and it’s easy to see why the integrated design approach sets the D Series apart from the competition. Best of all,  its affordable.

 Quiet & Built to Perform in Demanding Environments

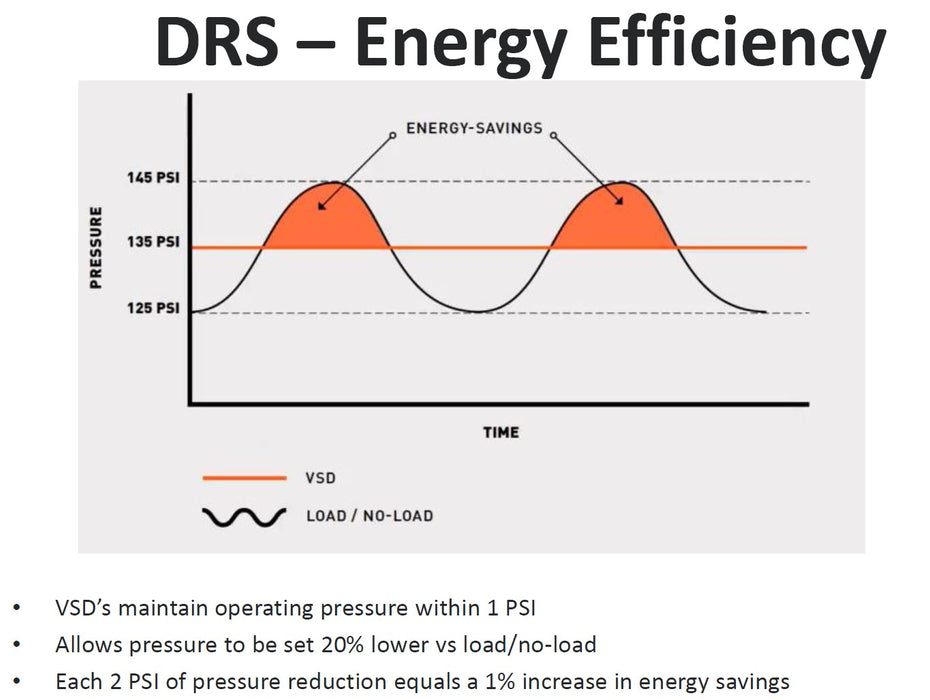

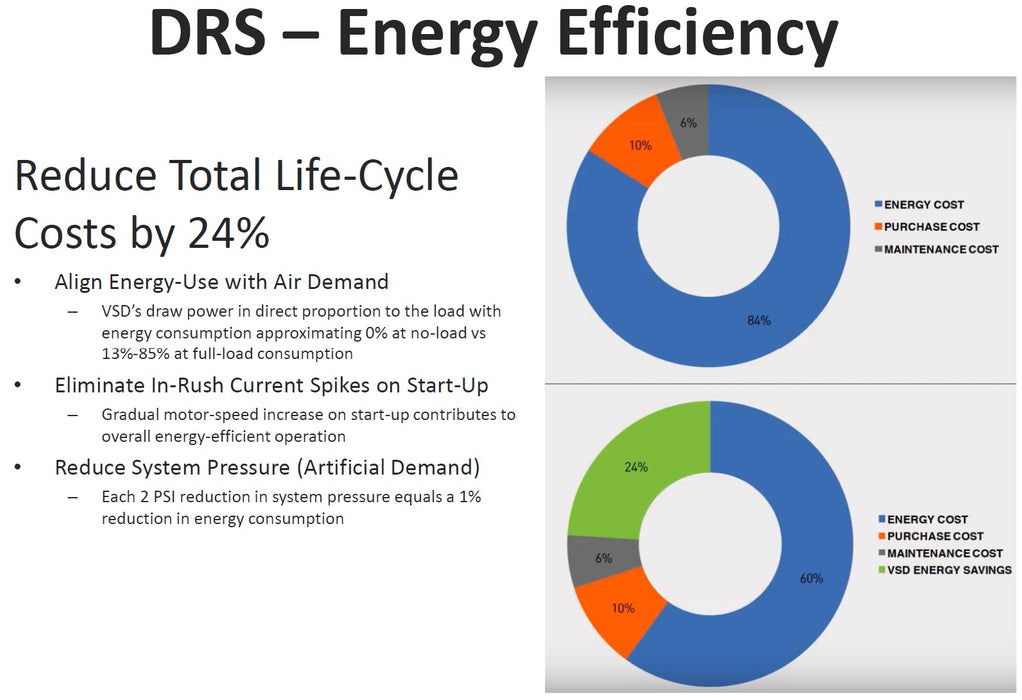

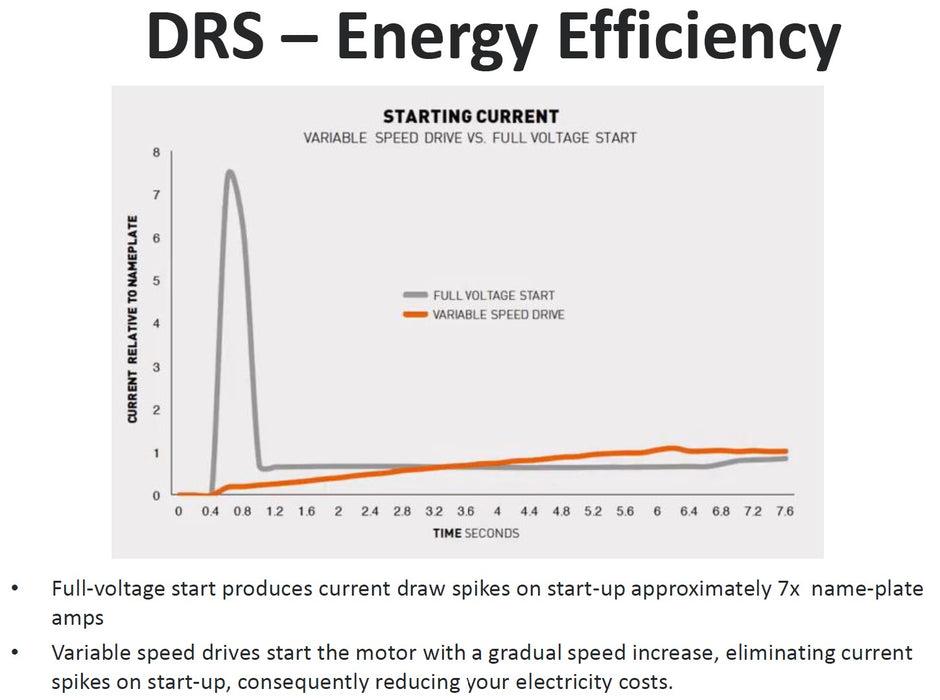

Designed with energy efficient inverter drives and motor combinations, DRS Series variable speed compressors from Champion are built to perform and ideal for environments where the air demand fluctuates. The variable speed drive’s pressure tracking controls ensure that energy use is optimized by producing only as much air as is needed, avoiding artificial demand. The quiet enclosed design enables you to install the compressor near the point-of-use without any concern of elevated noise levels. The DRS Series yields noise levels as low as 67 dBA allowing you to work
comfortably 24/7.

Model DRS10
Delivery 37 SCFM @ 145 PSI
Starter Variable Speed
Drive Direct
Controller CSC300
Voltage 230/1, 200/3, 230/3, 460/3
Noise 68 dba
Mount Base/Air System
Tank 80 Gallon

Champion DRS10A AirStation Configuration

Aftercooler- Air Cooled

Radiator type

Air/Oil Separator

Spin-On Type

Belt Adjustment

Manual

Capacity Control

Load/No Load

Compressor Fluid

RotorLub 4000

Compressor Oil Capacity Gal. (liters)

.8 (3.0)

Control Lines

Corrosion Resistant Tubing

Control Enclosure

IP23

Controller

CSC300

Design Codes

QPS Certified to UL Standards

Dimensions* Approx. In.



Discharge Pressure Check Valve

Minimum

Discharge Connection Size ("NPT)

.75" NPT

Drive Type

Direct Drive

AirStation/System Dryer Size

ProDry ASD40

Inlet Air Filter

Heavy Duty

Motor

TEFC; CSA Approved

Motor RPM

3500

Oil Cooler

Radiator Type, Air Cooled

Oil Reservoir

ASME

Oil Filter

Spin-On Type

Quiet Enclosure (dBA)

68

Variable Frequency Srive

Vaconm

Thermal Mixing Valve

Thermostatic
