Installation Kit 3 – For Three Compressor Systems
FREE SHIPPING
On All Orders Over $199.00
Satisfaction Guaranteed
Easy Exchanges & Returns
Secure checkout
Protected By SSL
Description
Clean Resources Installation Kit 3
Manufacturer Part Number: F10103
Organize condensate connections for a three-compressor installation with the Clean Resources F10103 kit. The package combines 200 feet of LDPE tubing with connectors, elbows, and tees for routing compressor-room drain lines to a CRP or IDC oil-water separator.
Key Features & Benefits
- Intended for three-compressor systems.
- 200 feet of tubing supports distributed drain locations.
- Nine union tees provide flexibility when arranging condensate runs.
Technical Specifications
| Manufacturer | Clean Resources |
|---|---|
| Manufacturer part number | F10103 |
| System arrangement | Three compressors |
| Tubing | 200 ft; 1/4 in OD × .170 in ID LDPE |
| Compatibility | Clean Resources CRP and IDC separators |

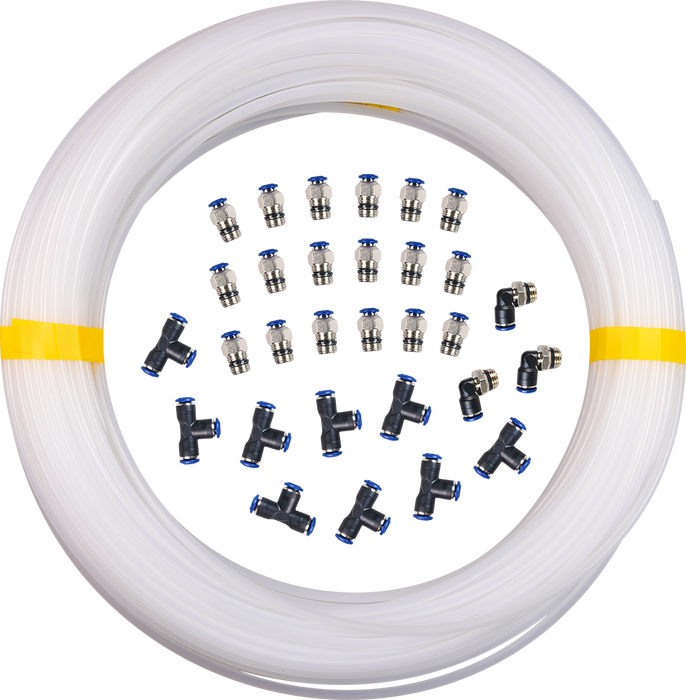

What's Included
- 18 × 1/4 in × 1/4 in male connectors
- 3 × 1/4 in × 1/4 in male elbows
- 9 × 1/4 in push-fit union tees
- 200 ft of LDPE tubing
Installation & Maintenance
Lay out the condensate routes and verify drain connections before cutting tubing. Confirm separator sizing independently of the installation kit; the number of fittings does not determine treatment capacity.
Compatible Accessories & Related Products
- Installation Kit 1 — F10101 — For one compressor.
- Installation Kit 2 — F10102 — For two compressors.
- IDC-350 Oil-Water Separator — F10050
- CRP-500 Oil-Water Separator — F10501
- CRP-750 Oil-Water Separator — F10502
- CRP-1000 Oil-Water Separator — F10503
- CRP-1500 Oil-Water Separator — F10504
- CRP-2000 Oil-Water Separator — F10505
Browse our Clean Resources oil-water separators for related condensate-management equipment.
Frequently Asked Questions
How many compressors does Kit 3 support?
F10103 is intended for installations with three compressors and their associated drain points.
What length of tubing is included?
The kit includes 200 feet of LDPE tubing, 1/4-inch OD × .170-inch ID.
How many tees come with this kit?
Nine 1/4-inch push-fit union tees are included.
Does a three-compressor kit determine separator size?
No. Separator sizing depends on total compressor capacity, runtime, oil carryover, and the required service interval.
Is the separator supplied with the kit?
No. This is a tubing and fitting package; the separator is sold separately.
Will it connect directly to every drain?
Verify outlet threads and connection sizes first. Some equipment requires additional adapters.
